A fibre patch cord links network devices with glass or plastic strands. These strands send light signals between devices. This technology gives you fast and steady data transfer. It is used in offices, schools, and data centers. Fibre patch cords are important for short-distance connections. They give high speed and low signal loss. You also get protection from electromagnetic interference. This helps keep your data safe.
- The global market size for fibre patch cords will be USD 2,373 million in 2025. It is expected to grow to USD 3,272.69 million by 2033, with a 4.1% growth rate.
Key Takeaways
- A fiber patch cord links network devices with light signals. It helps move data quickly and safely.
- Fiber patch cords give high bandwidth and low signal loss. They work well for short connections in offices and data centers.
- You pick the right fiber patch cord type based on distance and speed. Choose singlemode or multimode for your network needs.
- Good fiber patch cords lower signal loss and interference. This keeps your network stable and working well.
- Always match the fiber type and connector to your devices. This stops connection problems and keeps your network strong.

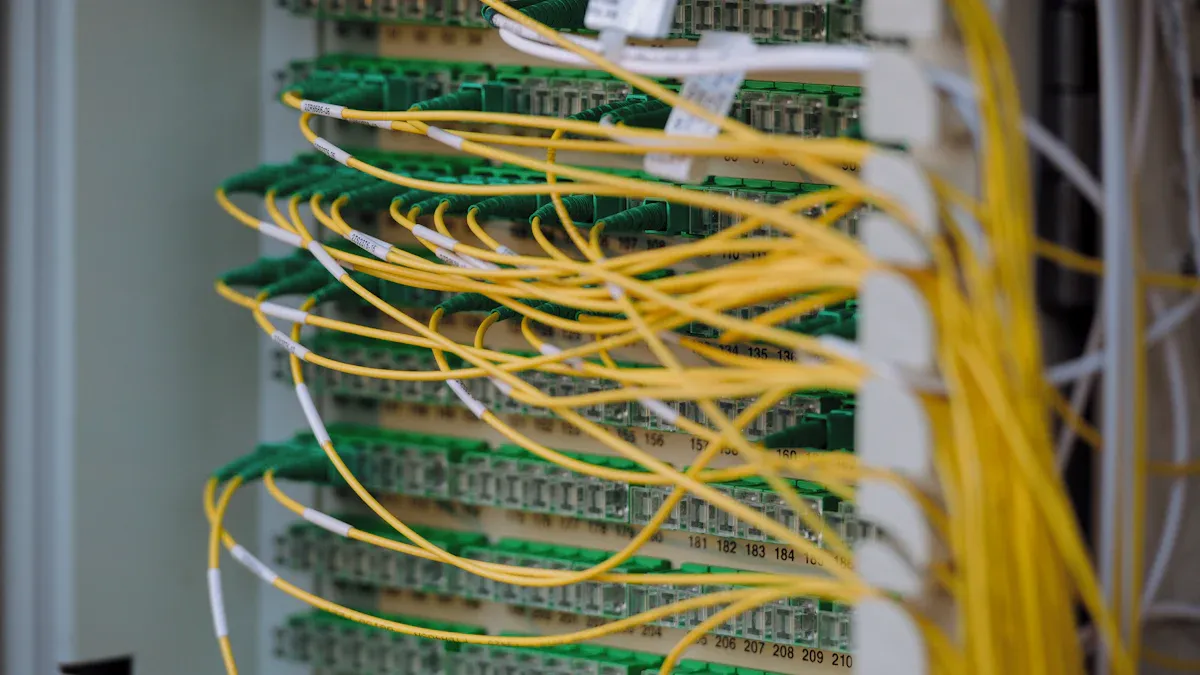

Fibre Patch Cord Basics
What Is a Fibre Patch Cord
A fibre patch cord connects network devices together. This cable has thin glass or plastic strands. These strands send light signals that carry data fast. The signals do not lose much strength. Fibre patch cords work best for short distances. You often see them in offices or data centers. You can pick single-mode or multimode types. Your choice depends on how far and how fast you need to send data.
A fibre patch cord gives high bandwidth and blocks electromagnetic interference. This keeps your data safe from outside noise. You get faster speeds and better signals than copper patch cords. Copper patch cords use metal wires to send electrical signals. These signals can get weak over long distances. They also pick up interference from other devices.
Tip: For fast and steady network connections, use a fibre patch cord instead of a copper patch cord.
Here is a table that shows the main differences between fibre patch cords and copper patch cords:
| Aspect | Fiber Patch Cords | Copper Patch Cords |
|---|---|---|
| Delay | Lower delay over long distances | Higher delay, especially over long distances |
| Signal Quality | Superior, less affected by interference | Prone to signal loss and interference |
| Distance | Suitable for long-distance transmission | Best for short distances |
| Bandwidth | Higher bandwidth capabilities | Limited bandwidth |
| Cost | Generally higher cost | Lower cost |
Structure and Connectors
A fibre patch cord has several main parts. Each part helps the cable work well and last longer. Here is a table that explains the main components:
| Component | Description |
|---|---|
| Aramid strength members | Strong, heat-resistant fibers that provide tensile strength to prevent breakage during manufacturing and use. |
| Buffer coating on the fiber | Protective coating that offers resistance to damage and seals the acrylate-coated fiber before splicing or connectorization. |
| Optic fiber | Composed of glass or plastic, it serves as an optical waveguide with a light-carrying core and cladding for light trapping. |
| Jacket | The external covering that holds all components together, providing protection but not strength. |
The optic fiber inside has a core and cladding. The core is where the light travels. It is made from clear glass or plastic. The cladding wraps around the core. It keeps the light inside by bouncing it back. This design helps the fibre patch cord send signals with little loss.
- The core size changes how the cable works. Single-mode fibers have a small core, about 5 to 10 micrometers wide. They send light straight and work well for long distances. Multimode fibers have a bigger core, about 50 to 65 micrometers wide. They let light bounce around inside, which is good for short distances.
You also need to know about connectors. The connector lets you plug the fibre patch cord into your devices. Here are two common types:
| Connector Type | Key Features | Applications |
|---|---|---|
| SC Connector | Push-pull latching mechanism, low insertion loss (< 0.5 dB), durable, compatible with many devices | Telecommunications networks, fast deployment |
| LC Connector | Small size, clip-locking mechanism, low insertion loss (< 0.5 dB), fits well in tight spaces | High-density applications, data centers |
Note: Picking the right connector type helps you match your fibre patch cord to your network equipment.
A fibre patch cord gives strong, fast, and steady connections. You can use it in many places, like offices or big data centers. The special structure and connectors make it a great choice for modern networks.
How Patch Cords Work
Data Transmission Role
A fibre patch cord sends data using light signals. This way is fast and reliable. Light moves through the fiber core. You lose less signal than with copper cables. Fiber optic cables do not get electromagnetic interference. Your network stays stable near machines or electrical gear.
Fiber optic cables use light, not electricity, for signals. This design helps keep signal loss low over long distances. You do not need repeaters or boosters as much. Your network stays simple and strong.
You can pick different fiber types for your network. Each type works with certain speeds and distances. Here is a table that shows common fiber types and how they perform:
| Fiber Type | Data Rate | Distance Supported |
|---|---|---|
| OM3 | 10 GB | Up to 300 meters |
| OM4 | 40 GB | Up to 550 meters |
| OM5 | 100 GB | Up to 500 meters |
OM3 is used in data centers and big networks. OM4 is good for video streaming and broadcasting. OM5 gives the fastest speeds for advanced uses.
- OM3: Used for backbone links, server-to-switch, and storage.
- OM4: Good for video and new tech.
Fiber gives high bandwidth and low delay. Your network can send big files, do video calls, and use cloud services without slowing down.
Connecting Devices
You connect devices with a fibre patch cord by following steps. You must match the fiber type and connector to your equipment. This helps you avoid signal problems and keeps your network working well.
| Step/Consideration | Description |
|---|---|
| Fiber Type Matching | Make sure the patch cord matches the fiber in your network. Use the right size and type. |
| Connector Compatibility | Pick connectors that fit your patch panels and devices. Sometimes you need hybrid cables. |
| Quality and Testing | Test each patch cord before use. This ensures good performance and reliability. |
| Cleanliness | Clean connectors before plugging them in. Use dust caps when not in use to protect them. |
You may have problems when connecting devices. Here is a list of common issues:
- Bad materials can cause failures.
- Bending the cable too much can break the signal.
- Loose or broken connectors may hurt performance.
- Physical damage can harm the fiber.
- Wrong cable direction can block signals.
- Misaligned transmitters and receivers can cause trouble.
- Poor network design can slow things down.
- Software mistakes can stop connections.
- Strong electromagnetic fields can affect equipment.
- Extreme conditions can damage cables.
Always check your cables and connectors before setting up your network. Clean and test them to avoid problems.
You can connect switches, routers, servers, and storage devices with a fibre patch cord. This setup gives you fast and safe data transfer. Your network stays strong and ready for upgrades.
Types of Fibre Patch Cords
Singlemode vs. Multimode
There are two main types of fiber patch cords. These are singlemode and multimode. Each type is good for different jobs.
- Singlemode fiber has a very small core. The core is about 8 to 10 microns wide. Light travels straight through this fiber. You can use singlemode for very long distances. It can go up to hundreds of kilometers. This type is great for backbone networks and big data centers. It gives high bandwidth and helps your network last longer.
- Multimode fiber has a bigger core. The core is usually 50 to 62.5 microns wide. Light bounces around inside this fiber. Multimode is best for short distances. You can use it inside buildings or across a campus. It costs less and works well for local area networks.
Here is a table to help you compare singlemode and multimode:
| Feature | Singlemode Fiber | Multimode Fiber |
|---|---|---|
| Core Size | 8-10 microns | 50-62.5 microns |
| Transmission Distance | Up to several hundred kilometers | Under 2 kilometers |
| Bandwidth Capacity | Very high | Limited by modal dispersion |
| Cost | Higher (mainly due to transceivers) | More affordable |
| Best Use Cases | Long-distance, data centers | Short-range, LANs |
Tip: Use singlemode for long distances and fast speeds. Use multimode for short and cheaper connections.

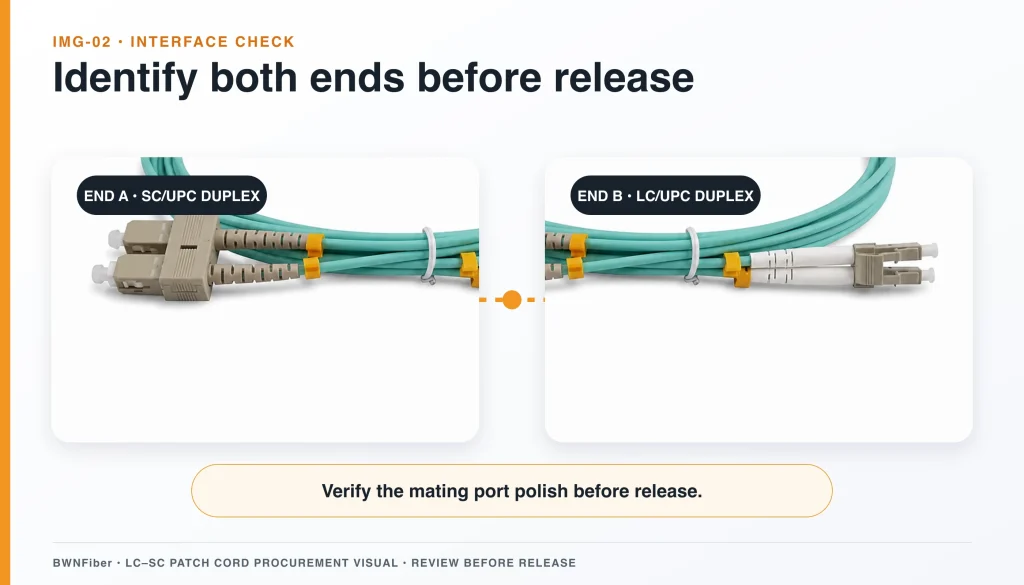

Connector Types
You need the right connector for your devices and network. Each connector has special features. Some work better with certain fibers or places.
| Connector Type | Key Features |
|---|---|
| SC | Push-pull, secure, low loss, great for singlemode |
| LC | Small, latching, fits high-density setups, works with both fiber types |
| ST | Bayonet lock, tough, often used with multimode |
| MPO/MTP | Handles many fibers at once, good for high-bandwidth, reduces cable mess |
| FC | Threaded, stable, used in long-distance networks |
| E2000 | Built-in shutter, low loss, used in telecom |
| MT-RJ | Compact, duplex, ideal for LANs |
The connector you choose affects how well your fiber patch cord works. LC connectors save space in crowded racks. SC connectors are easy to use and last a long time. The shape and polish of the connector tip also matter. Some tips, like APC or UPC, help lower signal loss. This keeps your network working well.
Note: Always pick the connector type that matches your equipment for the best results.

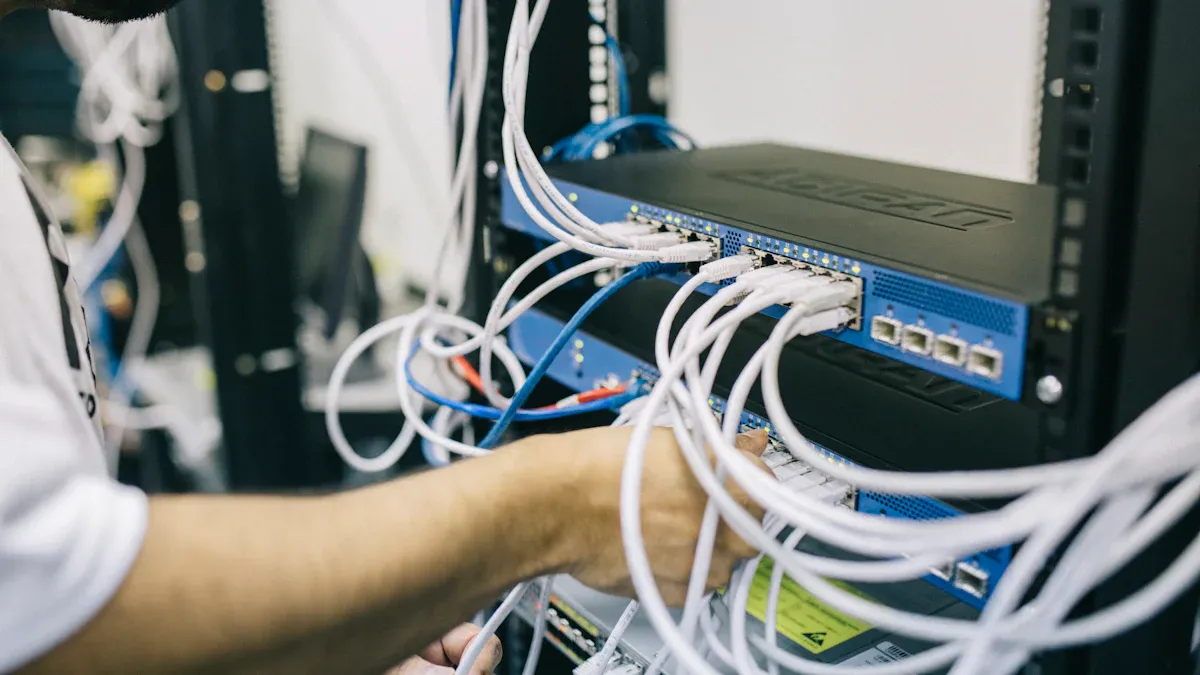

Applications in Networks
Data Centers
Data centers are very important for digital life today. They store, process, and move lots of data every second. A fiber patch cord helps keep these centers working well. You use these cables to connect servers, switches, and storage devices. This setup lets you move data fast and safely.
- Fiber patch cords help stop signal loss and interference. This keeps your data safe and correct.
- They support high bandwidth and low delay. You get quick responses for cloud apps and streaming.
- These cords are strong, so they work well in busy places.
- Their modular design makes it easy to upgrade your network as you grow.
Using fiber patch cords in data centers makes your network stronger and ready for the future.
Enterprise and Telecom
Fiber patch cords are used in many businesses and telecom places. These cables help connect devices and keep networks strong. Here is a table that shows where you might use them:
| Application Area | Description |
|---|---|
| Data Centers | Connects servers, switches, routers, and other equipment for high-speed data transmission. |
| Telecommunications | Sends voice, video, and data signals within telecom facilities. |
| Local Area Networks (LANs) | Links switches, routers, and devices in offices or campuses for high bandwidth. |
| Industrial Automation | Moves data between sensors, controllers, and machines, offering high reliability and EMI resistance. |
| Broadcasting and Audiovisual Systems | Sends high-definition video, audio, and control signals in studios and theaters. |
| Military and Aerospace Applications | Supports secure and reliable data in communication and surveillance systems. |
| Healthcare and Medical Imaging | Transmits high-resolution images and data in medical equipment. |
| Education and Research Institutions | Connects networking gear and computing clusters in schools and labs. |
In telecom networks, fiber patch cords help meet growing bandwidth needs. These cables send data with light, so you get faster speeds and more bandwidth. You can move data far without losing quality. Fiber patch cords also block electromagnetic interference, so your signal stays clear.
Fiber patch cords help you build networks that are fast, strong, and ready for new technology.
Choosing Patch Cords
Length and Compatibility
You need to pick the right length for your fibre patch cord. If the cable is too short, it will not reach your devices. If it is too long, you may have extra slack that can cause problems. Here are some things you should think about:
- Find the best cable length to keep your network working well and avoid signal loss.
- Know the distance between your devices before you choose a patch cord.
- Avoid extra slack to reduce interference and keep cables neat.
- Plan for future changes so your cables will still work if you add more devices.
Make sure the connectors fit your devices. If the connection is loose or does not match, your network may not work right. Always check that the patch cord matches your equipment before you buy it.
Quality Factors
You want your network to run fast and stay strong. High-quality patch cords help you get better signals and fewer problems. Good cables last longer and need less fixing. Here are some common mistakes you should avoid:
- Do not forget to clean the connectors. Dirty connectors can cause signal loss.
- Never pull the cable too hard or in the wrong way. This can break the cable and hurt your network.
You should look for patch cords that meet important quality standards. The table below shows what to check:
| Quality Standard/Test | Description |
|---|---|
| Insertion Loss/Return Loss Detection | Maximum insertion loss should be 0.75dB; typical values range from 0.3dB to 0.5dB. Return loss values should be greater than 50dB for Ultra PC polished connectors. |
| End Face Inspection | The end face must be clean and free from scratches or dust. |
| 3D Interferometer Inspection | Tests the shape of the fiber end face, including curvature radius and vertex offset. |
| Mechanical Performance Test | Checks the cable’s strength and safety under force. |
| Ambient Temperature Experiment | Tests how the cable works in different temperatures. |
High-quality fibre patch cord choices help your network stay stable and fast. You will see fewer problems and spend less time fixing cables. Your network will last longer and work better every day.
You use a fibre patch cord to get fast data. It helps your network work well and stay reliable. Fiber cables move data quicker than copper or wireless. They also send signals farther than other options. When you pick a patch cord, think about important things:
| Factor | Description |
|---|---|
| Optical Wavelength Range | Works best with certain light, like 850 nm, 1310 nm, and 1550 nm. |
| Durability | Stays strong in rough places. |
| Environmental Resistance | Handles heat and wetness without problems. |
| Connector Type | Matches your devices and keeps signals clear. |
New technology will make networks faster in the future. Choosing strong cables helps the planet by making less trash and lasting longer.
FAQ
What is the main use of a fiber patch cord?
You use a fiber patch cord to connect network devices. It helps you move data quickly and safely between switches, servers, or routers. You often see these cords in data centers and offices.
Can you use a fiber patch cord outdoors?
You should use special outdoor-rated fiber patch cords for outside use. These cords resist water, sunlight, and temperature changes. Regular indoor cords may not last long outside.
How do you clean fiber patch cord connectors?
You clean connectors with a lint-free wipe and fiber cleaning solution. Always keep the tips free from dust and oil. Dirty connectors can cause signal loss or damage your equipment.
What happens if you bend a fiber patch cord too much?
If you bend the cord too much, you can break the fiber inside. This causes signal loss or a complete failure. Always follow the bend radius limit given by the manufacturer.
