You can see fiber optic cables in lots of places. There are three main types of fiber optic cable. These are single-mode, multimode, and plastic optical fiber. Each type is good for different uses. Single-mode fiber sends data far away. It is used in telephone lines and cable TV. Multimode fiber connects computers and devices nearby. It helps with fast communication in local networks. Plastic optical fiber is for short connections. It is used in homes and cars.
| Fiber Type | Common Applications |
|---|---|
| Single-Mode Fiber | Telecommunications, Data Centers, CATV, Industrial, Defense |
| Multimode Fiber | LANs, Data Centers, High-Speed Connections |
| Plastic Optical Fiber | Consumer Electronics, Automotive, Home and Office Networks |
Key Takeaways
- Single-mode fiber works well for long distances. It moves data very fast. People use it in telecommunications. It is also used in data centers.
- Multimode fiber is good for short distances. It fits local networks and office connections. It costs less and is simple to set up.
- Plastic optical fiber bends easily and does not cost much. It works for short links in homes and cars. But it does not perform as well as glass fibers.
- Think about distance, speed, and cost when picking a fiber optic cable. Each type is made for different uses and places.
- Knowing how fiber types are different helps you pick the best cable. This makes sure your project works well and is worth the money.
Types of fiber optic cable
There are three main types of fiber optic cable. These are single-mode fiber, multimode fiber, and plastic optical fiber. Most networks use single-mode and multimode fibers. Plastic optical fiber is not as common. You might see it in homes or cars.
Tip: To pick the best cable, learn how each type works and where people use them.
Single-mode fiber overview
Single-mode fiber is a popular type of fiber optic cable. It has a very thin core, about 9 microns wide. The small core helps light move straight through the cable. This means less signal loss and less distortion. You can send data far away. Most single-mode fibers work at 1310nm and 1550nm wavelengths. You will find these cables in telephone lines, internet backbones, and big data centers.
Here is a table with the main features:
| Optical Fiber | Cladding Diameter | Core Diameter |
|---|---|---|
| Single-mode Fiber | 125μm | 9μm |
Single-mode fiber can send data up to 100 kilometers. The bandwidth is almost unlimited. You can send lots of data without trouble.
Multimode fiber overview
Multimode fiber is also a common type of fiber optic cable. It has a bigger core, usually 50 or 62.5 microns wide. The large core lets many light paths travel together. This causes more signal loss and distortion. You can only use multimode fiber for short distances. Most multimode fibers work at 850nm wavelength.
Here is a quick comparison:
| Optical Fiber | Cladding Diameter | Core Diameter |
|---|---|---|
| Multi-mode Fiber | 125μm | 50μm/62.5μm |
You will see multimode fiber in LANs, schools, and offices. It works for distances between 300 and 550 meters. Multimode fiber costs less and is easy to install. You do not need perfect alignment.
- Standard core sizes for multimode fiber are 50 to 100 microns.
- It has lower bandwidth for long distances, but works well for short, fast links.
Plastic optical fiber overview
Plastic optical fiber is the third type of fiber optic cable. It uses plastic for the core instead of glass. This makes the cable flexible and easy to put in. You can bend it around corners. Plastic optical fiber costs less than glass fiber. It has higher signal loss and lower bandwidth.
Here is a table that shows the differences:
| Property | Plastic Optical Fiber (POF) | Glass Optical Fiber |
|---|---|---|
| Cost | Lower cost | Higher cost |
| Flexibility | Greater flexibility | Less flexible |
| Installation | Easier installation | More complex installation |
| Bandwidth | Limited bandwidth | Higher bandwidth |
| Attenuation | Higher attenuation | Lower attenuation |
| Transmission Distance | Shorter distances | Longer distances |
| Temperature Tolerance | Lower tolerance | Higher tolerance |
You will find plastic optical fiber in homes, cars, and some electronics. It is best for short connections. You do not need high speed or long distance.
Note: Most people use single-mode and multimode fibers for big networks and fast data. Plastic optical fiber is good for simple, short links.
Now you know how the types of fiber optic cable are different. Each type has its own structure, performance, and use. If you understand what each type does, you can choose the right cable for your needs.
Single-mode fiber details
Features of single-mode fiber
Single-mode fiber has a very thin core. The core is about 9 microns wide. Only one light path goes through the cable. This design helps keep the signal strong. There is almost no distortion. You can send data very far without losing quality. Here are some key features:
- Single-mode fiber keeps signal loss low. You can send data far without extra equipment.
- It supports high bandwidth. You can move lots of data fast.
- The cable design stops modal dispersion. Your signal stays clear.
- The small core lowers light reflection. Attenuation stays low.
Single-mode fiber can reach up to 140 kilometers. It does not need a signal boost. The attenuation rate is much lower than other fiber optic cables. For example:
| Fiber Type | Attenuation Rate (dB/km) at 1310 nm | Attenuation Rate (dB/km) at 1550 nm |
|---|---|---|
| Single-Mode | 0.40 | 0.30 |
| Multimode | 3.50 | 1.50 |
Tip: Single-mode fiber uses a laser for its light source. This helps send data far and fast.
Uses of single-mode fiber
Single-mode fiber is used in many places. It is good when you need to send data far and fast. Here are some common uses:
- Connecting big networks in businesses and schools.
- Linking network switches and routers in data centers.
- Providing backbone connections for high-speed internet.
- Supporting powerful computing and storage networks.
- Giving reliable digital services in enterprise networks.
- Connecting to Internet Service Providers and other networks.
Single-mode fiber is the best choice for telecommunications and data centers. It works well for long distances and high data rates. This makes it different from other fiber optic cables.
Single-mode subtypes (OS1, OS2)
There are two main subtypes of single-mode fiber. These are OS1 and OS2. Each subtype has special strengths.
| Feature | OS1 Fiber | OS2 Fiber |
|---|---|---|
| Standard | ITU-T G.652.A/B | ITU-T G.652.C/D (Low or Zero Water Peak) |
| Construction | Tight-buffered, best for indoor use | Loose-tube with water-blocking gel |
| Attenuation | ~1.0 dB/km @ 1310nm & 1550nm | ~0.4 dB/km @ 1310nm & 1550nm |
| Water Peak | Present around 1383nm | Eliminated |
| Bend Sensitivity | More prone to losses | Enhanced bend-insensitive design |
| Typical Use Cases | Indoor runs up to 10km | Long-haul telecom, FTTH backhaul |
| Cost | Lower upfront cost | Slightly higher per meter, lower lifetime cost |
OS1 fiber is best for indoor use and short runs. It works well inside buildings. OS2 fiber is better for outdoor or long-distance use. It connects cities or supports fiber to the home networks.
Multimode fiber details
Features of multimode fiber
Multimode fiber has a bigger core. The core size is between 50 and 62.5 micrometers. This lets many light paths move through the cable together. More light can enter, so connecting is easy. You can set up multimode fiber fast and it costs less. It works best for short distances. People use it in data centers and local networks.
- The large core lets in more light, so connections are simple.
- You can install it quickly and save money.
- The cable carries many light paths. This can cause modal dispersion. Modal dispersion means the signal spreads out and gets blurry. Different light paths move at different speeds. This limits how far and how fast data can go.
Uses of multimode fiber
Multimode fiber is used in many business networks. It links devices over short spaces and supports fast data. Here are some common uses:
- Optical LANs
- Emergency phones
- HD security cameras
- Digital signs
- Wi-Fi spots
- Small cells
- Devices that use low-voltage DC power
Multimode fiber is a good choice for short distances. It gives more bandwidth than copper cables. The fiber works well with cheap VCSEL optics. OM3 and OM4 types support fast Ethernet. They are great for reliable and quick data in business networks. You will see multimode fiber in data centers. It connects network gear and gives strong links.
Multimode subtypes (OM1, OM2, OM3, OM4)
There are different multimode fiber types. Each type has its own speed and distance. The main types are OM1, OM2, OM3, and OM4. The table below shows how they compare:
| Fiber Type | Core Diameter | Bandwidth (MHz·km) | Max Transmission Distance (m) |
|---|---|---|---|
| OM1 | 50/62.5 μm | 200/500 | N/A |
| OM2 | 50/62.5 μm | 500/500 | N/A |
| OM3 | 50 μm | N/A | 300 |
| OM4 | 50 μm | N/A | 550 |
OM1 works for 100 Megabit Ethernet up to 33 meters. OM2 is good for 1 Gigabit Ethernet up to 82 meters. OM3 and OM4 support 10 Gigabit Ethernet. OM3 reaches 300 meters. OM4 reaches 550 meters. Here is another table with more details:
| Fiber Type | Jacket Color | Core Size (µm) | Max Distance for 10GbE | Common Use Case |
|---|---|---|---|---|
| OM1 | Orange | 62.5 | 33 meters | 100 Megabit Ethernet |
| OM2 | Orange | 50 | 82 meters | 1 Gigabit Ethernet |
| OM3 | Aqua | 50 | 300 meters | 10 Gigabit Ethernet |
| OM4 | Aqua | 50 | 550 meters | 10 Gigabit Ethernet |
You can see that each fiber type is good for different speeds and distances. OM3 and OM4 are best for fast networks over longer spaces.
Comparing fiber optic cable types
Performance and cost comparison
You need to look at both performance and cost when you compare the types of fiber optic cable. Each type has its own strengths and price range. Here is a table that shows how they stack up:
| Fiber Type | Cost per Foot | Distance Suitability |
|---|---|---|
| Single-Mode Fiber | $0.10 – $0.50 | Long distances (up to 40 km) |
| Multimode Fiber | $0.30 – $1.00 | Short distances (inside buildings) |
| Plastic Optical Fiber | Generally lower | Limited performance over long distances |
Single-mode fiber works best for long distances and high speeds. It has low attenuation and high bandwidth. You often see it in city-wide networks or between buildings. Multimode fiber fits short runs inside buildings. It costs more per foot but uses cheaper transceivers. Plastic optical fiber is the least expensive. You can use it for short, simple links, but it does not support high speeds or long distances.

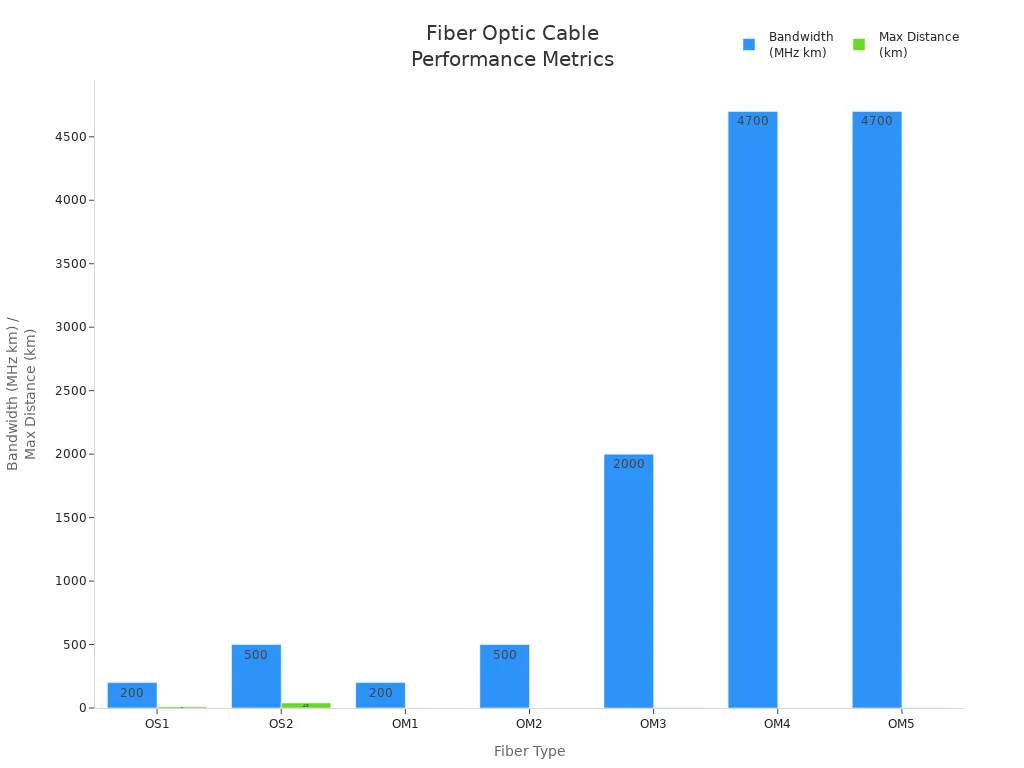

Here is a chart that compares bandwidth and maximum distance for different fiber optic cable types:
Tip: Single-mode fiber gives you the best performance for long distances, but the total system cost can be higher because of the transceivers.
Choosing the right fiber optic cable
You should think about a few key factors before you pick a cable. Ask yourself these questions:
- How far do you need to send data? Single-mode fiber is best for long distances. Multimode fiber is enough for short runs inside a building.
- How many devices will you connect? If you need high bandwidth or plan to add more devices, single-mode fiber may be a better choice.
- What is your budget? Multimode fiber can save money for short links. Plastic optical fiber is the cheapest, but it has limits.
- Will your network grow in the future? If you expect growth, single-mode fiber can help you avoid upgrades later.
Environmental conditions also matter. Outdoor cables need to handle weather, moisture, and physical stress. Some cables resist chemicals or work in extreme temperatures. Always check the cable’s rating for your installation.
Note: You can match the right cable to your needs by looking at distance, speed, cost, and the environment. This helps you get the most value from your network.
You now have a clear view of the main differences between the types of fiber optic cable. Use this knowledge to make the best choice for your project.
You now know single-mode fiber is best for sending data far. It also works well when you need lots of speed. Multimode fiber is good for short distances. It costs less and is used in homes and offices. Plastic optical fiber bends easily and is simple to put in. But it does not last as long as glass fiber.
| Type of Fiber | Expected Lifespan (Years) | Notes |
|---|---|---|
| Single-mode Fiber | Up to 30 | Stays working longer than multimode fiber. |
| Multimode Fiber | Up to 30 | Usually does not last as long as single-mode. |
| Plastic Optical Fiber | Shorter than glass fibers | Exact lifespan is not listed. |
If you switch from copper to fiber, remember these things: Fiber cables let you move more data. The signal stays strong and clear. Fiber does not get messed up by other signals.
Pick your cable by thinking about distance, speed, and cost.
FAQ
What is the main difference between single-mode and multimode fiber?
Single-mode fiber has a small core. It sends light in one path. You use it for long distances. Multimode fiber has a bigger core. It lets light travel in many paths. You use it for short distances.
Can you use plastic optical fiber for high-speed internet?
You should not use plastic optical fiber for high-speed internet. It works best for short, simple links. You see it in home devices or cars. It does not support fast data rates like glass fiber.
How do you know which fiber optic cable to choose?
You need to think about distance, speed, and cost. Single-mode works for long runs. Multimode fits short links. Plastic optical fiber is good for easy, short connections. Always check your network needs first.
Is fiber optic cable safe to handle?
Yes, fiber optic cable is safe to touch. You should wear safety glasses when cutting or splicing. Tiny glass pieces can hurt your eyes or skin. Always clean up scraps after working.
Do fiber optic cables last a long time?
You can expect glass fiber optic cables to last up to 30 years. Plastic optical fiber does not last as long. Proper installation and care help your cables work longer.
