A Passive Optical Network (PON) is a fiber-optic telecommunications system that delivers data from a single source to multiple endpoints using unpowered components. The essential passive optical network components include an Optical Line Terminal (OLT) at the service provider’s central office, multiple Optical Network Units (ONUs) or Terminals (ONTs) located near end-users, and passive optical splitters that divide and distribute the fiber-optic signal.
Understanding the Passive Optical Network (PON) Architecture

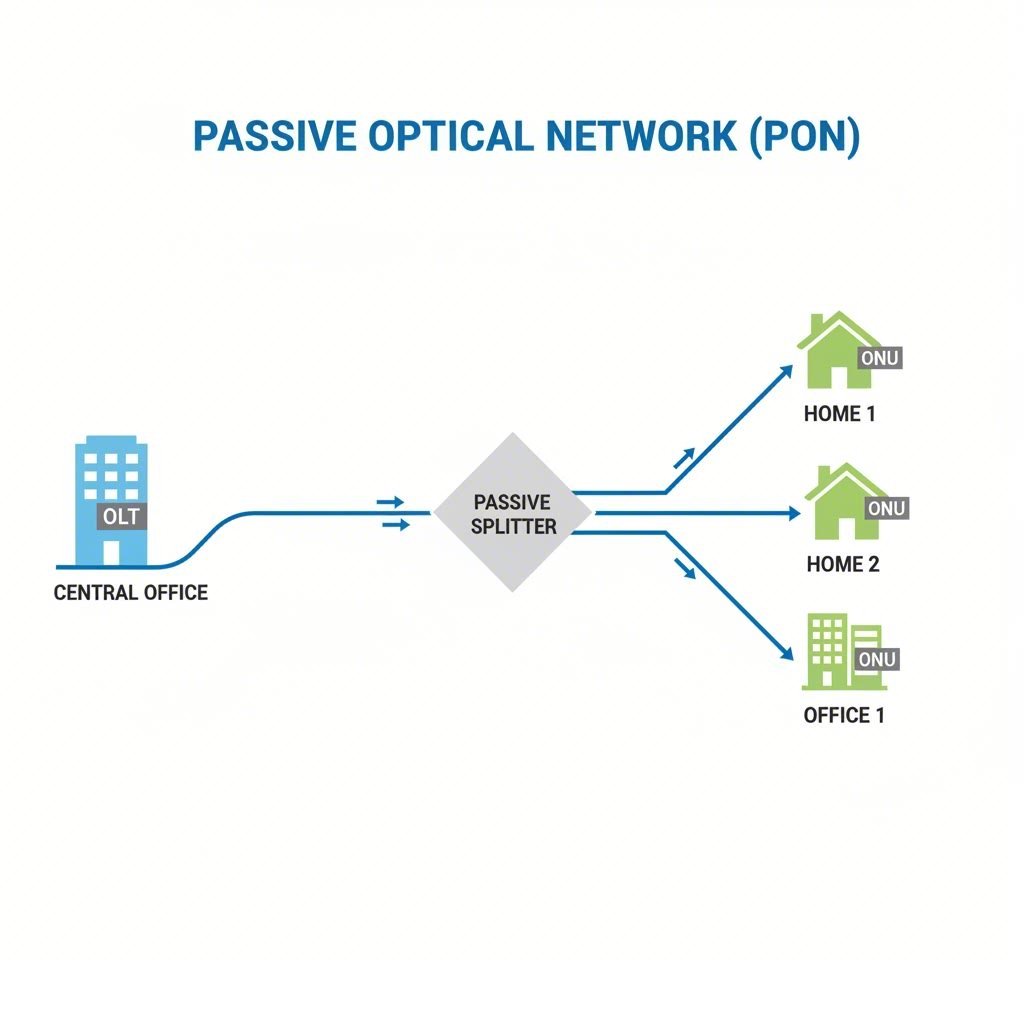

A Passive Optical Network (PON) is a specific type of fiber-optic network that brings high-speed connectivity to end-users without requiring any electrically powered components in the distribution network. This “passive” nature is its defining characteristic and primary advantage. At its core, a PON uses a point-to-multipoint architecture, where a single optical fiber from a central location is split to serve numerous individual subscribers, making it an efficient technology for delivering services like Fiber-to-the-Home (FTTH).
The network begins at a service provider’s central office or hub, where the Optical Line Terminal (OLT) is located. From the OLT, a single fiber optic cable runs out into the field. Along this path, unpowered devices called optical splitters are used to divide the light signal from the single fiber into multiple separate paths. Each path then continues to an Optical Network Unit (ONU) or Optical Network Terminal (ONT) at or near the subscriber’s premises. This architecture significantly reduces the amount of fiber cabling and central office equipment needed compared to point-to-point networks where every user requires a dedicated fiber line back to the central hub.
To manage traffic on this shared network, PONs use Wavelength-Division Multiplexing (WDM). This technique assigns one wavelength of light for downstream traffic (from the OLT to ONUs) and another for upstream traffic (from ONUs back to the OLT). Downstream data is broadcast to all ONUs, but encryption ensures that each unit can only read the data specifically addressed to it. For upstream traffic, a protocol like Time-Division Multiple Access (TDMA) is used, where the OLT assigns specific time slots to each ONU to transmit data, preventing signals from colliding.
The key distinction between a PON and an Active Optical Network (AON) lies in how the signal is distributed. AONs rely on electrically powered equipment, such as switches or routers, within the distribution network to direct traffic. In contrast, PONs use unpowered splitters, leading to lower operational costs, higher reliability, and greater energy efficiency.
| Feature | Passive Optical Network (PON) | Active Optical Network (AON) |
|---|---|---|
| Distribution Method | Uses unpowered optical splitters to share a single fiber among multiple users. | Uses electrically powered switches and routers to direct data to specific users. |
| Infrastructure | Point-to-multipoint architecture. Less fiber required. | Point-to-point architecture. Requires dedicated fiber for each user. |
| Power Requirement | Only at the source (OLT) and destination (ONU/ONT). No power needed in the field. | Requires power for switches and other active components in the field. |
| Cost & Maintenance | Lower operational costs and less maintenance due to fewer active components. | Higher costs due to powered equipment and the need for climate-controlled cabinets. |
Key Component #1: The Optical Line Terminal (OLT)
The Optical Line Terminal (OLT) is the central nervous system and starting point of a Passive Optical Network. Typically located in a service provider’s central office or a local data hub, the OLT serves as the bridge between the PON and the provider’s core network, which connects to the broader internet. It is an active, powered device responsible for managing and coordinating all communication across the optical network it serves. Think of the OLT as the brain or air traffic controller of the PON, orchestrating the flow of data to and from every subscriber.
The OLT performs several critical functions to ensure the network operates efficiently. Its primary roles include:
- Signal Conversion: It converts the standard electrical signals used by the service provider’s equipment into the fiber optic signals that are sent downstream over the PON.
- Traffic Scheduling: For upstream traffic coming from the users, the OLT coordinates the transmissions from multiple ONUs to prevent data collisions. It allocates specific time slots to each ONU, a process known as dynamic bandwidth allocation (DBA), ensuring fair and efficient use of the shared fiber.
- Multiplexing: The OLT aggregates traffic from all the ONUs and sends it upstream into the core network. Conversely, it takes a single input from the core network and broadcasts it downstream to all connected ONUs.
- Management and Provisioning: Network administrators interact with the OLT to configure the network, provision new subscribers, monitor performance, and troubleshoot issues.
A single OLT device can manage multiple PONs, with each physical port on the OLT serving a distinct fiber line that can be split to support up to 64 or even 128 end-users. This high density makes OLTs a highly scalable solution for deploying broadband services to a large number of customers from a single, centralized location. The OLT’s ability to manage bandwidth allocation dynamically is crucial for handling the bursty nature of internet traffic, where user demands can fluctuate significantly.
Key Component #2: The Optical Network Unit (ONU) / Terminal (ONT)
At the other end of the Passive Optical Network, situated at or near the subscriber’s location, is the Optical Network Unit (ONU) or Optical Network Terminal (ONT). These terms are often used interchangeably, but there is a subtle technical distinction. According to the ITU-T, an ONT is typically a standalone device for a single subscriber (like in a house), while an ONU might serve multiple subscribers (like in an apartment building) before the connection is distributed further. In common practice, however, the device inside a user’s home that connects to the fiber is frequently called an ONT.
The primary function of the ONU/ONT is to act as the endpoint of the PON, converting the optical signals received over the fiber back into electrical signals that can be used by the customer’s devices. It is the modem equivalent for a fiber-optic network. When data is sent downstream from the OLT, the ONU/ONT receives the broadcast signal, filters out and processes only the data packets addressed to it, and passes them to the user’s local network via Ethernet ports.
For upstream communication, the ONU/ONT waits for its assigned time slot from the OLT. Once its turn arrives, it converts electrical signals from the user’s devices into an optical signal and transmits it back over the fiber. This disciplined, time-slotted communication prevents the data from different users from interfering with each other on the shared fiber path back to the central office. Modern ONUs and ONTs are sophisticated devices that often integrate multiple functions, including:
- Ethernet ports for connecting computers, switches, or Wi-Fi routers.
- Voice ports (POTS) for traditional telephone service over VoIP.
- Coaxial outputs for delivering RF video services.
- Built-in routing and Wi-Fi capabilities, combining the modem and router into a single home gateway device.
Essentially, the ONU/ONT is the critical demarcation point between the service provider’s fiber network and the subscriber’s internal home or business network. It terminates the high-speed optical connection and translates it into the familiar technologies that power our digital lives.
Key Component #3: Passive Optical Splitters and Cabling
The components that truly define a Passive Optical Network are the unpowered, or passive, elements that reside between the OLT and the ONUs. The most crucial of these is the passive optical splitter. A splitter is a simple, highly reliable device that takes a single incoming optical signal and divides it into multiple identical, but lower-power, output signals. It requires no external power source, no cooling, and minimal maintenance, making it the cornerstone of the PON’s cost-effectiveness and reliability.
Splitters work by physically dividing the beam of light. They are characterized by their split ratio, which determines how many output fibers are created from a single input. Common split ratios include 1:8, 1:16, 1:32, and 1:64. A 1:32 splitter, for example, divides the incoming signal into 32 separate paths, allowing a single fiber from the OLT to serve up to 32 subscribers. The trade-off is that with each split, the signal strength is reduced. Network designers must carefully calculate the total signal loss (or power budget) across the network to ensure that the signal reaching the furthest ONU is still strong enough to be read accurately.
Beyond the splitters, the passive infrastructure includes other essential components:
- Fiber Optic Cables: These are the physical pathways that carry the light signals. PONs typically use single-mode fiber, which is designed for long-distance, high-bandwidth applications.
- Connectors and Adapters: These are used to connect different segments of fiber cable or to link the fiber to devices like the OLT, splitters, and ONUs.
- Cabinets and Enclosures: These protective housings are placed in the field to store and protect the optical splitters and fiber splices from environmental factors.
The organization and protection of these passive elements are vital for network longevity. For robust FTTx network deployments and organized data center infrastructure, specialized solutions are key. For instance, BWNFiber delivers a comprehensive range of fiber cable management solutions, including fiber distribution boxes and splice closures that ensure bend radius protection and long-term reliability for these critical passive components.
The Future-Ready Foundation of Modern Networks
The components of a Passive Optical Network—the intelligent OLT, the user-facing ONU/ONT, and the simple yet crucial passive splitters and cabling—combine to create a highly efficient, scalable, and cost-effective architecture for delivering high-speed data. By minimizing the need for powered electronics in the field, PONs reduce operational complexity and costs while boosting network reliability. This elegant design is why PON technology has become the global standard for deploying fiber-to-the-premises services. As data demands continue to soar, the inherent ability of PONs to be upgraded by simply changing the electronics at either end (the OLT and ONUs) without replacing the passive fiber infrastructure ensures it will remain a foundational technology for communications networks for years to come.
Frequently Asked Questions
1. What are the main components of a passive optical network?
A passive optical network (PON) consists of three primary components. First is the Optical Line Terminal (OLT), located at the service provider’s central office, which manages the network. Second are the Optical Network Units (ONUs) or Terminals (ONTs) located at the end-user’s premises. Third are the passive optical splitters and fiber optic cabling that form the optical distribution network (ODN), which distributes the signal from the OLT to the multiple ONUs without using any powered equipment.
2. What are the passive network components?
In a fiber optic network, passive components are those that do not require an external power source to operate. The most common examples include the fiber optic cables themselves, optical splitters that divide the light signal, connectors that join cables, and cabinets or enclosures that house and protect the splices and splitters. These components simply guide or divide the light signal, forming the backbone of a PON’s reliability and low operational cost.
3. What is the difference between active and passive components in fiber-optic networks?
The key difference is the need for electrical power. Active components, such as amplifiers, switches, and routers, require power to manipulate, regenerate, or direct the optical signal. They can actively manage traffic and boost signal strength. In contrast, passive components like splitters, filters, and connectors operate without any electrical power. They work by physically guiding or dividing the light. Passive optical networks leverage these unpowered components in the field to reduce cost, complexity, and maintenance requirements compared to active optical networks.
