When you pick SC or LC connectors for your fiber termination box, you need to think about what you need. LC connectors are smaller than SC connectors, allowing you to fit more connections in a tight space. LC connectors are used more often and are ideal for locations with numerous connections. SC connectors are strong and cost less, making them a popular choice in phones and homes. Before you choose, consider the size, how many ports you need, their performance, and your budget.
Key Takeaways
- Pick LC connectors if you need many connections. LC connectors are small. They fit well in tight places. This makes them good for data centers.
- Use SC connectors for regular jobs and to save money. SC connectors are bigger. They cost less. They are easy to use. They work well in homes and small offices.
- Look at how both connectors work. SC and LC connectors lose little signal. This helps your network stay strong.
- Check what you need for installation. SC connectors connect fast with a push-pull way. LC connectors use a latch. This keeps them steady in small spaces.
- Think about how long and how often you use them. SC connectors last for 500 uses. LC connectors last for 1000 uses. This makes them good for different places.

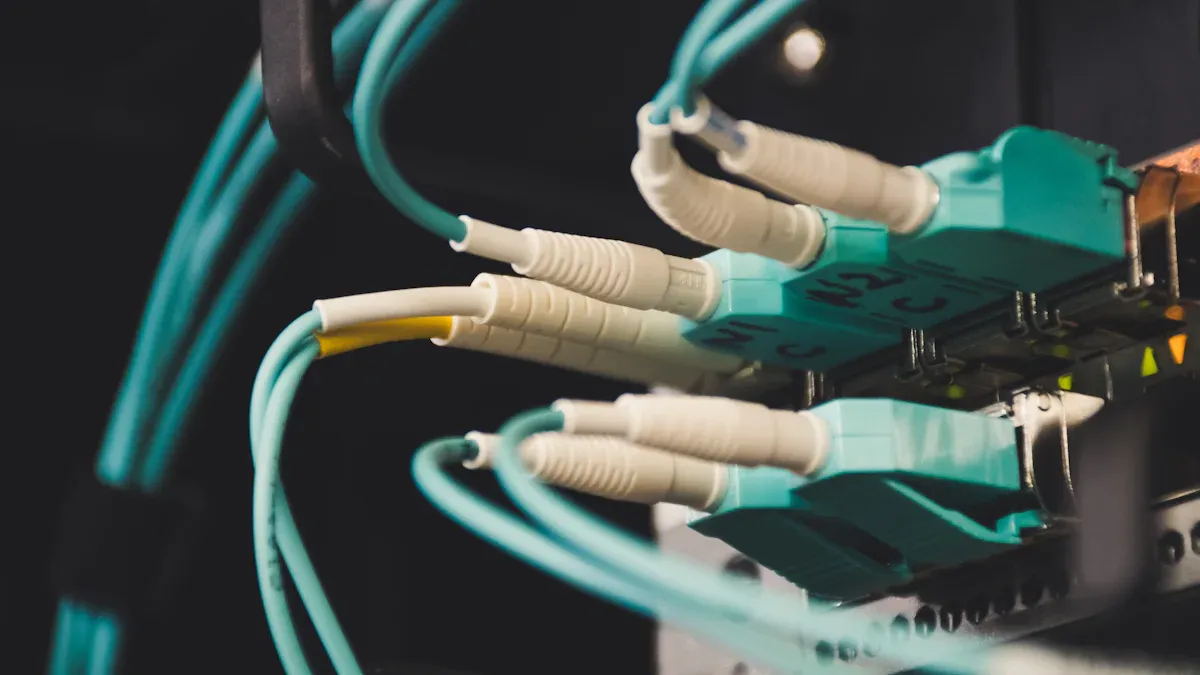

SC and LC Connector Overview
SC Connector Features
SC connectors have a long history in fiber optic networks. You often see them in home networks and telephone systems. The SC connector uses a 2.5mm ferrule made from strong materials like zirconia or stainless alloy. This ferrule helps keep the fiber stable and aligned. The SC connector uses a push-pull design, so you can plug it in and pull it out quickly. You do not need to twist or turn it. This makes installation simple and fast.
You can also join two SC connectors with a duplex clip. This lets you connect two fibers at once, which is helpful for some network setups. SC connectors are larger than LC connectors, so they take up more space in a fiber termination box. However, they are very durable and can handle at least 500 connections and disconnections.
Here is a quick comparison of SC and LC connector designs:
| Parameter | SC Connector | LC Connector |
|---|---|---|
| Ferrule Size | 2.5mm | 1.25mm |
| Physical Size | 25×9.8mm | ~50% smaller than SC |
| Coupling Mechanism | Push-pull | Latch-based |
| Port Density | 24 ports/1U | 48 ports/1U |
LC Connector Features
LC connectors are much smaller than SC connectors. You will find them in places where space matters, such as data centers. The LC connector uses a 1.25mm ferrule, which is half the size of the SC ferrule. This small size lets you fit more connections into the same space. In fact, you can double the number of ports in a fiber termination box when you use LC connectors.
The LC connector uses a latch locking mechanism. When you plug it in, you hear a click. This sound tells you the connection is secure. The latch design also makes it easy to use LC connectors in tight spaces. You do not need much room to connect or disconnect them.
Tip: If you need to maximize the number of connections in a small area, LC connectors are the best choice.
Both SC and LC connectors offer high durability and low signal loss. However, LC connectors stand out in high-density environments, while SC connectors remain a solid choice for general use.
SC vs LC: Key Factors
Size and Space Efficiency
When you pick connectors, size is important. SC connectors have a 2.5mm ferrule. LC connectors have a 1.25mm ferrule. LC connectors are smaller than SC connectors. Smaller connectors use less space. You can fit more LC connectors on a panel. A 1U patch panel holds 96 LC connectors in duplex. It holds only 48 SC connectors. LC connectors are better if you want more ports.
| Connector Type | Diameter | Port Density Impact |
|---|---|---|
| SC Connector | 2.5mm | Lower density, good for places with more space. |
| LC Connector | 1.25mm | Higher density, best for saving space in data centers and telecom racks. |
Note: LC connectors help save space in small fiber termination boxes.
Performance Metrics
Performance is important for your network. SC and LC connectors lose little signal. They also reflect little signal. These numbers are called insertion loss and return loss. Groups like IEC and TIA set rules for these numbers. Most connectors have insertion loss between 0.1 and 0.3 dB. UPC connectors have return loss above 55 dB. APC connectors have return loss above 65 dB. Both connector types keep signals strong.
| Connector Type | Insertion Loss | Return Loss |
|---|---|---|
| SC | 0.1–0.3 dB | -35dB to -60dB |
| LC | 0.1–0.3 dB | -35dB to -50dB |
| Parameter | Typical Value | Notes |
|---|---|---|
| Insertion Loss | 0.1–0.3 dB | Shows how much signal is lost |
| Return Loss (UPC) | >55 dB | Shows how much signal is reflected |
| Return Loss (APC) | >65 dB | Used for analog or RF systems |
| Repeatability | ±0.1 dB | After 500 times connecting and disconnecting |
| Durability | >1000 matings | If you clean connectors well |
Ease of Use
Connectors should be easy to use. SC connectors use a push-pull design. You can connect and disconnect them fast. LC connectors use a latch, like an RJ-45 plug. You press the latch to lock it in place. The latch makes LC connectors more stable. It may take a little longer to install LC connectors. SC connectors are good for quick changes. LC connectors are better for tight spaces.
| Connector Type | Connection Method | Installation Time Impact |
|---|---|---|
| SC | Push-pull design, easy to use but can loosen | Faster to connect but less secure |
| LC | RJ-45-style latch, press for stability | Takes a bit longer but is more stable |
Cost
Cost is a big factor when you choose connectors. SC connectors cost less than LC connectors. For example, 50 SC connectors cost $482.00. 50 LC connectors cost $1281.00. LC connectors cost more because they are smaller and harder to make. They use special materials like ceramic ferrules. If you want to save money, pick SC connectors.
| Connector Type | Quantity | Price per Unit | Total Price |
|---|---|---|---|
| SC Connector | 50 | $9.64 | $482.00 |
| LC Connector | 50 | $25.62 | $1281.00 |
Tip: Buying more connectors at once can lower the price per connector.
Durability
Durability means how long connectors last. LC connectors can be used 1000 times. SC connectors last for 500 times. Both use strong materials like ceramic ferrules and stainless steel. These materials help connectors resist damage and heat. Some connectors have high IP ratings. This protects them from water and dust. If you need connectors for tough places, choose ones with strong seals and materials.
| Connector Type | Mating Cycles |
|---|---|
| LC | 1000 |
| SC | 500 |
- Stainless steel and brass make connectors strong and stop rust.
- PEEK and PTFE polymers help connectors resist chemicals.
- Rubber and silicone make connectors flexible and seal well.
Note: Good connectors keep your fiber termination box working, even in hard conditions.
SC vs LC: Quick Comparison Table
| Feature | SC Connector | LC Connector |
|---|---|---|
| Ferrule Size | 2.5mm | 1.25mm |
| Physical Size | Larger | Smaller |
| Port Density | Lower | Higher |
| Insertion Loss | 0.1–0.3 dB | 0.1–0.3 dB |
| Return Loss | -35dB to -60dB | -35dB to -50dB |
| Connection Mechanism | Push-pull | Latch-based |
| Installation Speed | Faster | Slightly slower |
| Cost | Lower | Higher |
| Durability | 500 cycles | 1000 cycles |
| Environmental Sealing | Good | Excellent |
Pick the connector that fits your needs for space, cost, and durability.

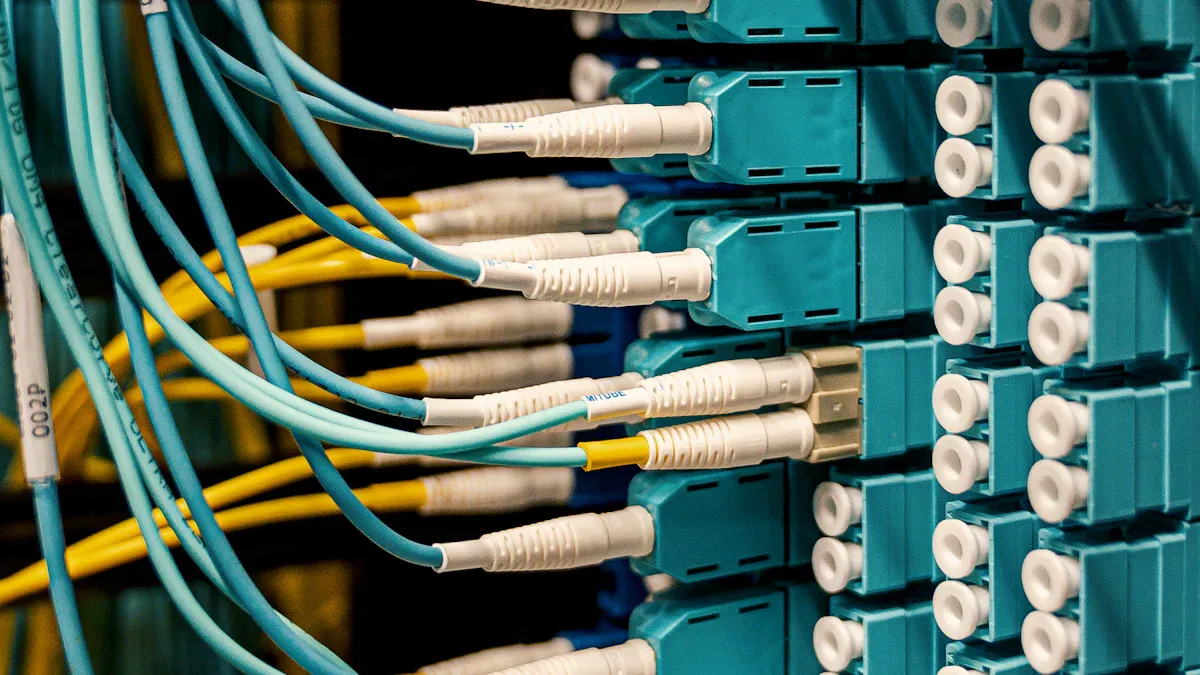

SC vs LC in Fiber Termination Box
High-Density Installations
Sometimes you need to fit lots of connections in a small space. LC connectors help with this problem. They are small, so you can put twice as many in the same spot as SC connectors. This makes LC connectors great for data centers and telecom rooms. Every bit of space matters in these places. LC connectors let you grow your fiber termination box as your network gets bigger. They keep your signal strong because they have low insertion loss and high return loss, even with many cables close together.
- LC connectors are good for high-density cabling in modern data centers.
- Their small size lets you add more connections without using too much space.
- LC connectors keep signal quality high, even when things get crowded.
Tip: If you want to grow your network or save space, pick LC connectors for your fiber termination box.
If you need even more connections or faster speeds later, you can use MTP or MPO connectors. These connectors hold many fibers in one spot.
Frequent Connection Environments
Some places need you to plug and unplug cables a lot. SC connectors are good for this because they have a strong 2.5 mm ferrule. You can use them many times and they will not break. SC connectors are a good choice for fiber termination boxes in labs, classrooms, or telecom closets. You need to change connections often in these places.
- SC connectors are easy to use and put in, even if space is tight.
- Their strong design helps stop problems when you reconnect them a lot.
- If you use any connector a lot, dust or dirt can get inside and you may need more cleaning.
LC connectors are also tough, but their small size can make them harder to hold in tight spots. If you need to patch cables often, SC connectors can save you time and help them last longer.
Note: Always clean connectors to keep your signal strong and stop problems in your fiber termination box.
Typical Use Cases
You see both SC and LC connectors in many places, but each one is better for different jobs. The table below shows where you might use each type in a fiber termination box:
| Connector Type | Advantages | Common Use Cases |
|---|---|---|
| LC | Small size, fits tight spaces, easy duplex | Transceivers, networking, data centers |
| SC | Strong hold, stops loose connections, standard size | Fiber termination boxes, general networking, residential |
In big places like data centers, LC connectors are used a lot. They let you put more connections in a small space. This helps your fiber termination box get ready for future growth. In homes or small offices, SC connectors are more common. They cost less and last a long time. They work well for networks that do not need lots of connections.
LC connectors help you save space and get ready for a bigger network. SC connectors give you a strong and cheap choice for everyday use.
Pick the connector that fits what you need. Think about how many connections you want, how often you will change them, and how much space you have in your fiber termination box.
Choosing the Right Connector
For Data Centers
You need to think about space and future growth when you work in a data center. LC connectors give you a compact design, so you can fit more connections in a small area. This helps you increase port density and keep your fiber termination box organized. The table below shows how LC and SC connectors compare in data centers:
| Connector Type | Size | Port Density | Durability | Ease of Use |
|---|---|---|---|---|
| LC | Compact | High | Moderate | Moderate |
| SC | Larger | Low | High | Easy |
You can see that LC connectors let you add more connections without taking up extra space. This makes them the top choice for high-density racks and fast-growing networks. If you want to save space and plan for the future, choose LC connectors for your fiber termination box.
For FTTH and General Use
If you set up fiber to the home (FTTH) or work in a small office, you may not need as many connections. SC connectors work well in these places. They are easy to use and last a long time. You can connect and disconnect them quickly. Their strong build helps them handle frequent use. Many homes and small businesses use SC connectors in their fiber termination box because they are reliable and simple to install.
Tip: If you want a connector that is easy to handle and does not need high port density, SC connectors are a smart pick.
For Budget Considerations
You may need to watch your budget when you choose connectors. SC connectors usually cost less than LC connectors. If you want to keep costs down and do not need to fit many connections in a small space, SC connectors help you save money. LC connectors cost more because they are smaller and more complex to make. Think about how many connections you need and how much you want to spend before you decide.
- SC connectors: Lower cost, good for basic needs
- LC connectors: Higher cost, best for high-density setups
Ready to find the best connector for your project? Contact us today for expert advice or a custom quote!
You now know that LC connectors work best for high-density fiber termination boxes, especially in data centers. SC connectors give you a strong and budget-friendly option for homes or small offices. Think about your space, how many connections you need, and your budget.
Tip: Choose LC for more ports in less space. Pick SC for simple, durable setups.
Make the choice that fits your network needs.
FAQ
What is the main difference between SC and LC connectors?
SC connectors are bigger and use a push-pull design. LC connectors are smaller and use a latch. You can fit more LC connectors in a small space. SC connectors cost less and are easier to handle.
Can you mix SC and LC connectors in one fiber termination box?
You cannot connect SC and LC connectors directly. You need an adapter or a hybrid patch cable. Always check your equipment before you buy connectors.
Which connector is better for beginners?
SC connectors are easier for beginners. You can plug and unplug them quickly. The larger size makes them simple to hold and install.
Do LC connectors break easily because they are small?
LC connectors are strong. They use tough materials like ceramic and steel. You should handle them with care, but they last through many uses.
How do you keep connectors clean?
You should use a fiber optic cleaning tool or a lint-free wipe. Always clean connectors before you connect them. This helps keep your signal strong and your network working well.
