MMC Connectors and Adapters for VSFF Fiber Panels

Available MMC Connector Options

Adapter mounting, port count, housing dimensions and color depend on the selected panel design. Include the panel drawing or mating-component part number with your inquiry so compatibility can be confirmed.

Male vs. Female MMC Connectors

A male connector contains guide pins; a female connector contains the corresponding guide-pin holes. The two mating interfaces must use a compatible male/female arrangement. Gender should be checked at both ends of the link rather than selected as an isolated cable option.

UPC vs. APC Polish

Use the polish specified by the optical interface and link design. APC is commonly selected where lower back reflection is required in single-mode links. UPC and APC interfaces must not be mated together. Multimode and single-mode configurations should also remain separate throughout the link.

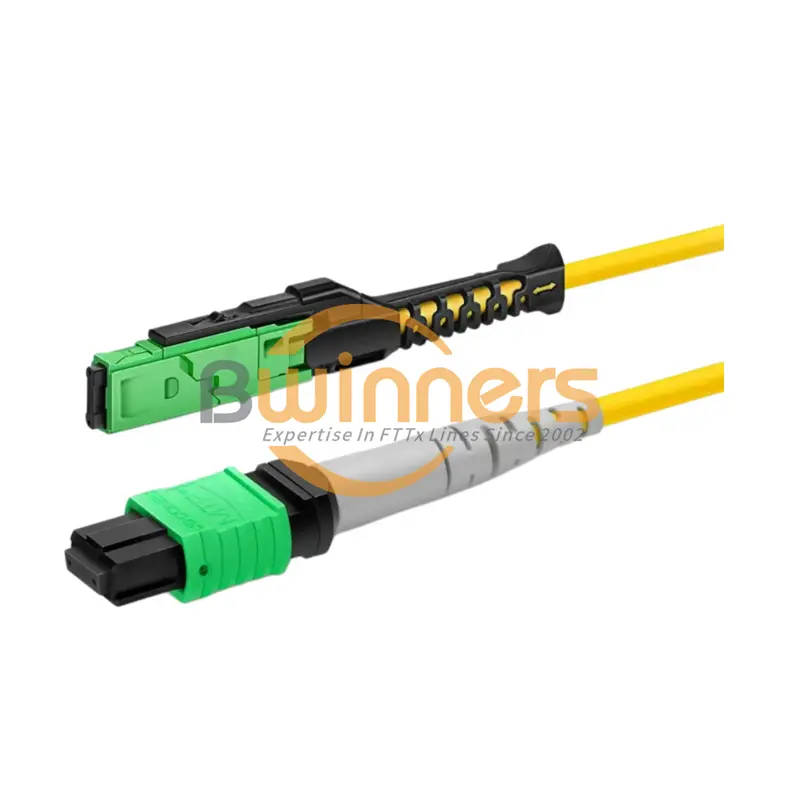

MMC and MPO Compatibility

MMC is smaller than a standard MPO connector and does not plug into an MPO adapter. A migration design can use an MMC-to-MPO harness or a panel arrangement with the appropriate interfaces on each side. Confirm channel mapping and polarity before ordering any hybrid link.

What to Send for a Quote

• Required fiber count and quantity
• Male/female arrangement
• UPC or APC polish
• Panel drawing or equipment interface
• Required adapter mounting and port count
• Labeling, packaging and documentation requirements

If connector-only or adapter-only supply is required, include the assembly process and mating-component details. BWNFiber will confirm the applicable product format rather than assuming interchangeability.

Related MMC Products

• MMC-MMC Jumper / Patch Cord
• MMC-MMC Trunk Cable
• MMC Breakout / Harness Cable
• All MMC Solutions

Request a Configuration Check

Send the fiber count, gender, polish, quantity and panel or equipment drawing. BWNFiber will confirm the compatible connector and adapter configuration.

CTA: Ask an Engineer

What is an MMC connector?

MMC is a multi-fiber miniature connector designed for high-density VSFF optical cabling. BWNFiber’s documented configurations include 12F, 16F and 24F options.

Are MMC adapters compatible with MPO connectors?

No. MMC and MPO have different footprints and do not mate directly.

How do I choose connector gender?

Check the mating port at each end. A pinned male interface mates with the corresponding unpinned female interface.

Can UPC and APC connectors be mixed?

No. Use the same polish on both mating interfaces and follow the equipment specification.

Are optical test reports available?

Test documentation is available for terminated MMC cable assemblies. Request the applicable limits and report format with the product quotation.
