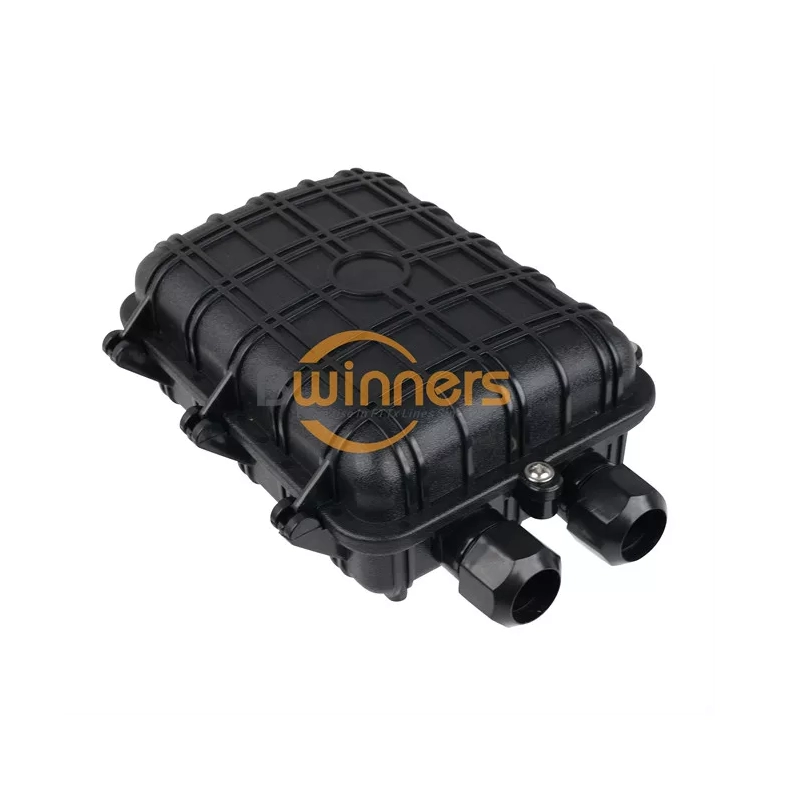

48 Cores 2 Port Cable Gland Aerial Joint Closures Model: SJ-Small-4

SJ-Small-4 48 cores 2 port cable gland aerial joint closures are suitable for deployment in the aerial, underground, or direct buried environment, outdoor network rack enclosure can accommodate up to 48 cores, can cover most of the applications in the fiber distribution networks like FTTH (Fiber To The Home), FTTC (Fiber To The Curve). If you are interested in our lockable rack-mount enclosure products, email us for free samples.

Enquiry
  • Model: SJ-Small-4
  • Dimension: 28X20X9CM
  • Max Capacity: 48 Cores (4 X 12 splice tray)
  • Cable Hole: 2 Ports
  • Cable Diameter: Φ14.0mm
  • Sealing Structure: Silicon Gum Material Sealing
  • Material: PP, PC
  • Installation: wall mounted
  • IP Grade: 65
  • Weight: 1.12Kgs

Something about the SJ-Small-4 fiber distribution box you need to know

SJ-Small-4 48 Cores 2 Port Cable Gland Aerial Joint Closures is suitable for deployment in the aerial, underground, or direct buried environment, Joint Closures can accommodate up to 48 cores, Joint Closures can cover most of the applications in the fiber distribution networks like FTTH (Fiber To The Home), FTTC (Fiber To The Curve).

Horizontal Mechanical Gel Sealing Aerial Joint Closures, It’s a Mechanical Gel Sealing type FOSC and adopts 2 Round Port design, 2 port, each port for 1 cable with max 14mm.

Name 48 Cores 2 Port Cable Gland Aerial Joint Closures
Model SJ-Small-4
Size 280X200X90mm
Cable Hole 2 ports
Sealing Structure Silicon Gum material Sealing
Material PP, PC
Max Capacity 48 Cores, 4 x 12F Tray
Cable Diameter For Φ14mm
Installation wall mounted
Protection Grade IP65
Packing Information Size:61x49x55CM, 20PCS/CTN, G.W.:23KGS

Features

Convenient to increase or reduce trays/ cassette for capacity requirement
Used in an application for straight-through cables and bundle of fiber and fiber bundle
Improved reinforce rebar on the body of closure make excellent performance under the impact, pulling, tension, etc
Splice tray easy to use page design
A quick way to make use of open sealed maintenance easier
Fixing item/designs to prevent fiber cable from external effect
Spacious place for storing and maintenance
Can be used from 40 °C to +65°C temperature range
Integrated seal, airtight and waterproof, flame-retarded
Stable and reasonable with the mechanical sealing structure filled with silicone rubber material, it can be opened after sealing and can be reused
Suitable for aerial, wall, underground duct or direct burial applications

Application

CATV networks
Optical fiber communication
FTTX
Fiber optic network convergence
Optical fiber access network
Widely used in FTTH access network
Telecommunication networks
Data communications networks
Local area networks
Aerial, Direct buried, underground, pipeline, hand-holes, duct mounting, wall mounting.
