High Precision Fiber Cleaver Tool with 16 Position Blades for 250µm and 900µm Fiber Cable

MBN-PFC-67 High Precision Fiber Cleaver Tool, featuring 16-position blades, is designed for cleaving 250µm and 900µm fiber cables. Constructed from durable high-hardness aluminum alloy, it guarantees up to 48,000 cleaves. It achieves cleave angles typically under 0.5°, with cleave lengths for 900µm fibers ranging from 10mm to 20mm and for 250µm fibers from 6mm to 20mm, making it perfect for various applications. Its design is both compact and lightweight.

  • Model: MBN-PFC-67
  • Name: High Precision Fiber Cleaver Tool with 16 Position Blades for 250µm and 900µm Fiber Cable
  • Applicable Fiber: Conventional silica glass optical fiber
  • Coated Diameter of Suitable Fiber: Ø0.25 & 0.9μm
  • Clad Diameter of Suitable Fiber: 125um
  • Cut Fiber Length: 9-16mm(Ø 0.25) 10-16mm(Ø 0.9)
  • Fiber Count: Single fiber (0.25&0.9mm) up to 12-fiber ribbon
  • Cutting Angle Adaptive Value: ≤ 0.5°
  • Cutter Life Span: 16X3X1000=48000 times
  • Cutter Spsecification: Inner bore Ø 4mm, external diameter Ø 22mm

High Precision Fiber Cleaver Tool with 16 Position Blades for 250µm and 900µm Fiber Cable (MBN-PFC-67)

Description

MBN-PFC-67 Fiber Cleaver tool, featuring a versatile 3-in-1 Fiber Holder, accommodates 2.5-3.0mm jacketed fibers, 0.9mm pigtails, and 0.25mm bare fibers. It utilizes silica optical fiber and achieves a cleaving angle of ≤5 degrees for precise cuts. Cleaving lengths range from 9-16mm for 0.25mm coated fibers and 10-16mm for 0.9mm coated fibers. Designed for longevity, its blade can perform up to 48,000 cleaves. With a stainless steel slide mechanism, this cleaver is easy to use, offering smooth, safe operation to enhance your work efficiency.

Specification

Model No.MBN-PFC-67 (Stainless Steel & Plastic Pressure Pad)
NameHigh Precision Fiber Cleaver Tool with 16 Position Blades for 250µm and 900µm Fiber Cable
Fiber CountSingle fiber (0.25&0.9mm) up to 12-fiber ribbon
Cladding Diameter125 μm
Cleave Length9~16mm (φ0.25 mm) / 10~16mm (φ0.9 mm)
Cleave angle (typ.)0.5 degrees (Max.≤0.7°)
Off-cut collectorPre-fitted
Blade rotationmanual
Blade life48,000 cleave blade life for single fiber cleaves, or 4,000 12-fiber ribbon cleaves
Dimensions (W x D x H)97(W) x 66(D)x 52(H) mm
ColorBlack

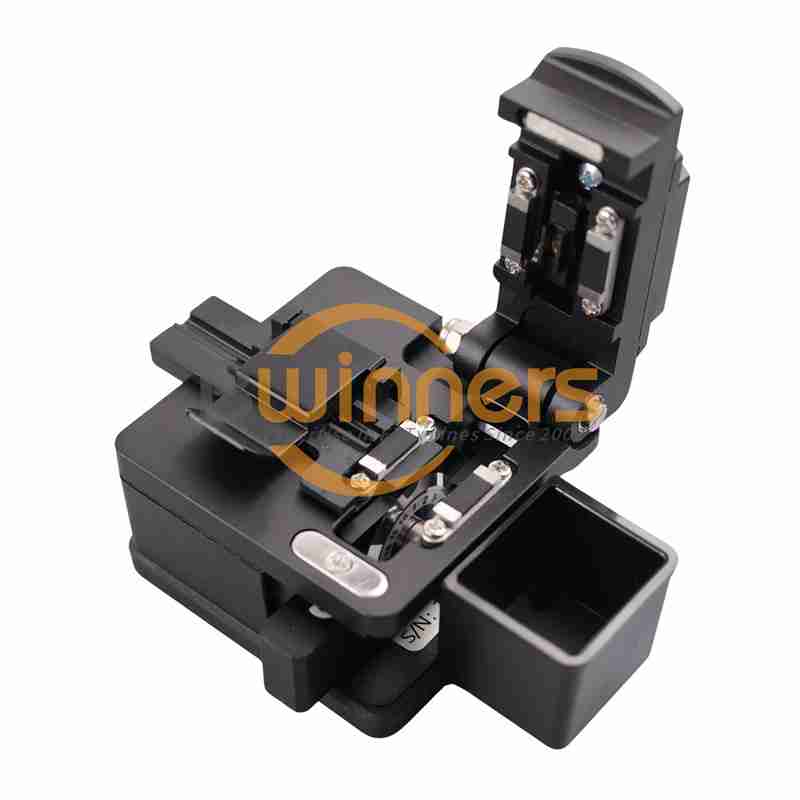

MBN-PFC-67 (Stainless Steel Pressure Pad) High Precision Fiber Cleaver Tool More Views
fiber cleaver optic fiber cleaver optical fiber cleaver fiber cleaver tool
MBN-PFC-67 (Plastic Pressure Pad) High Precision Fiber Cleaver Tool More Views
fiber cleaver tool fiber cutting tool fiber optic cable cleaver fiber optic cable cutting machine fibre cable cutterbest fiber cleaver
BWNFiber offer a range of reasonably priced, highly precise fiber optic cleavers that are customized to fit the requirements of your network.
For more details datasheet and new products catalog, please contact us soon.

Operating Instructions:

Open the larger press plate, slide the tool rest towards you (or it slides automatically), exposing the smaller press plate.
Remove the fiber coating, leaving 30-40mm of bare fiber, and clean the bare fiber 2-3 times using a cotton ball soaked in anhydrous alcohol.
Insert the fiber into the guide slot using your left hand, ensuring the bare fiber length post-cut is between 5-20mm, as required by the fusion splicer or other fiber equipment.
Close the press plates in order, ensuring the fiber is perpendicular to the cutter. Slide the tool rest to cut the fiber. A “Bang” sound indicates successful cutting.
Holding the cutter in your left hand, open the larger press plate with your right hand. With your left fingers, hold the fiber and use your right hand to open the smaller press plate, then gently remove the cut fiber piece, ensuring no residue remains.

Maintenance and Adjustment Guide:

Blade Height Adjustment:

Loosen the height lock bolt.
Turn the height adjustment screw.
Tighten the bolt to secure the blade.

Blade Edge Rotation:

Loosen the bolt securing the blade.
Rotate the blade gently using a cotton swab or precision tweezers.
Retighten the bolt to secure the blade in its new position.
Blade Replacement:

Unscrew and remove the blade fixture bolt.
Remove the old blade with tweezers.
Install a new blade.
Secure the new blade by tightening the fixture bolt.

Using your left hand to hold the cutter, reveal the large pressing plate with your right; simultaneously, use your left hand to hold the fiber and reveal the little pressing plate. The fiber whose surface has been sliced should be carefully removed. Remark: The surface of the fiber should

be sufficiently uncluttered to exclude additional objects.

Simple upkeep and modification

Adjusting Blade Height:

A. Undo the bolt that locks the blade height.
B. Adjust the blade’s height by turning the adjustment screw.
C. Secure the blade by fastening the fixture bolt.

Replacing the Blade’s Cutting Edge:

A. Remove the bolt securing the blade.
B. Rotate the blade to a new edge using a cotton swab or precision tweezers.
C. Re-tighten the fixture bolt to secure the blade.
