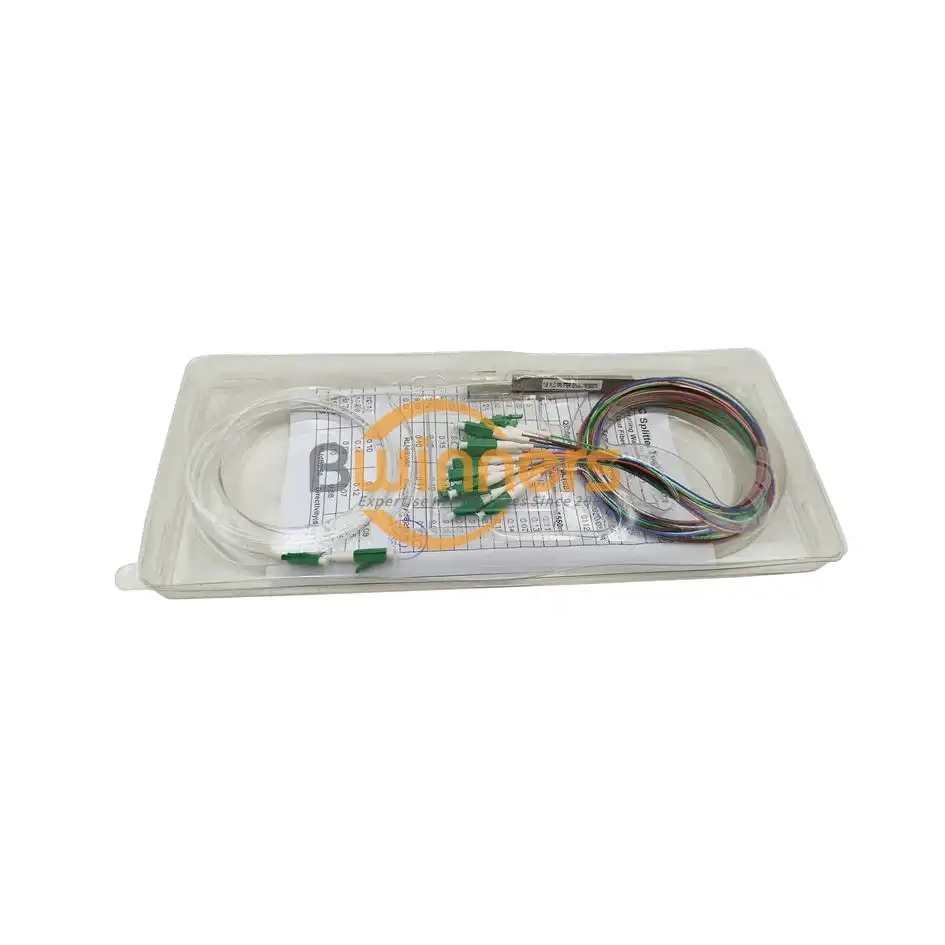

Steel Tube 1×8 LC/APC Optic Fiber Splitter Model: BWN-PLC-MMST-1X8-LC-APC

Optical fiber PLC splitter is a device used to realize the splitting and combining of light wave energy. It distributes the optical energy transmitted in one optical fiber to two or more optical fibers in a predetermined proportion, or combines the optical energy transmitted in multiple optical fibers into one optical fiber. The compact design and simply installation of FTTX fiber optic makes the splitting of light wave energy easier and cost effective.

  • Model:BWN-PLC-MMST-1X8-LC-APC
  • Splitter Type: PLC Steel Tube Type
  • Connector Type: SC/LC/ST APC/UPC
  • Fiber Type: G657A or customized
  • Fiber Diameter: 0.9mm/2.0mm/3.0mm
  • Fiber Length: 1m or Customized
  • Compliance: Telcordia GR-1209-CORE GR-1221-COR
  • Operating wavelength: 1260nm-1650nm
  • Return Loss: 55dB
  • Operating Temperature: -40~85℃

Something about BWN-PLC-MMST-1X8-LC-APC fiber PLC splitter you need to know

Optic Fiber Splitter is a type of optical power management device that is fabricated using silica optical waveguide technology.

Optic Fiber Splitter features small size, high reliability, wide operating wavelength range, and good channel-to-channel uniformity, and Optic Fiber Splitter is widely used in PON networks to realize optical signal power splitting.

Bwnfiber provides the whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE and GR-1221-CORE requirements.

1XN PLC Splitter Specification

                                                                                                    Table 1-1XN PLC Splitter
Parameters1×21×41×81×161×321×64
Operating Wavelength (nm)                                                         1260~1650
Fiber Type                                                            G657A or customer specified
Insertion Loss (dB)(P/S Grade)3.8/4.07.1/7.310.2/10.513.5/13.716.5/16.920.5/21.0
Loss Uniformity (dB)0.40.60.81.21.52
Return Loss (dB)555555555555
Polarization Dependent Loss(dB)0.20.20.20.250.30.35
Directivity (dB)555555555555
Wavelength Dependent Loss(dB)0.30.30.30.50.50.5
Temperature Stability(-40~85 °C)(dB)0.40.40.40.50.50.5
Operating Temperature (°C)                                                               -40~85
Storage Temperature (°C)                                                                -40~85
Device Dimension (mm)   (L×W×H)40×4×440×4×440×4×450×4×450×7×460×12×4
Module Dimension (mm)   (L×W×H)100×80×10100×80×10100×80×10120×80×18140×115×18140×115×18
Mini-Module Dimension (mm)60×7×460×7×460×7×460×12×480×20×6100x40x6

2XN PLC Splitter Specification

                                                                                           Table2-2XN PLC Splitter
Parameters2×22×42×82×162×322×64
Operating Wavelength (nm)                                                   1260~1650
Fiber Type                                                 G657A or customer specified
Insertion Loss (dB)47.61114.417.521
Loss Uniformity (dB)0.611.21.51.82.2
Return Loss (dB)555555555555
Polarization Dependent Loss(dB)0.20.20.30.30.40.4
Directivity (dB)555555555555
Wavelength Dependent Loss(dB)0.30.40.50.50.50.5
Temperature Stability(-40~85 °C)(dB)0.40.40.40.50.50.5
Operating Temperature (°C)                                                             -40~85
Storage Temperature (°C)                                                             -40~85
Device Dimension (mm)  (L×W×H)40×4×450×4×450×4×450×7×460×7×460×12×4
Module Dimension (mm)  (L×W×H)100×80×10100×80×10100×80×10120×80×18120×80×18140×115×18
Mini-Module Dimension (mm)60×7×460×7×460×7×460×12×480×20×6N/A
