You can put in a fibre patch cord at home. You just need to follow easy steps and be careful. Planning helps you pick the right cord for your network. Be gentle when you handle the cord. Use the correct connectors to keep your connection strong. Fibre patch cords last longer and are tougher than copper cables. They also protect better from interference. Look at the table below to compare:
| Factor | Fiber Patch Cords | Copper Cables |
|---|---|---|
| Durability | Very strong and tough | Not as strong, breaks down easier |
| Longevity | Can last up to 50 years | Needs a new one every 5 years |
| Resistance to Interference | Not bothered by EMI | Can be affected by electromagnetic interference |
| Security | Hard for others to tap | Easy for others to tap |
If you follow each step, you will have a good home network.
Key Takeaways
- Plan your installation with care. Draw a map of your home. Mark where each device will connect. This helps you avoid mistakes. It also keeps your network strong.
- Pick the right fibre patch cord. Think about how far the cord will go. Check what kind of connection you need. The right cord works better and lasts longer.
- Keep your workspace neat. Gather all your tools before you start. This saves time. It also helps you make fewer mistakes.
- Check and clean your fibre patch cords often. Dirt can make signals weak. Clean the connectors to keep your network fast and steady.
- Use a patch panel to manage cables. It keeps connections tidy. It protects your equipment. It also makes upgrades easier later.

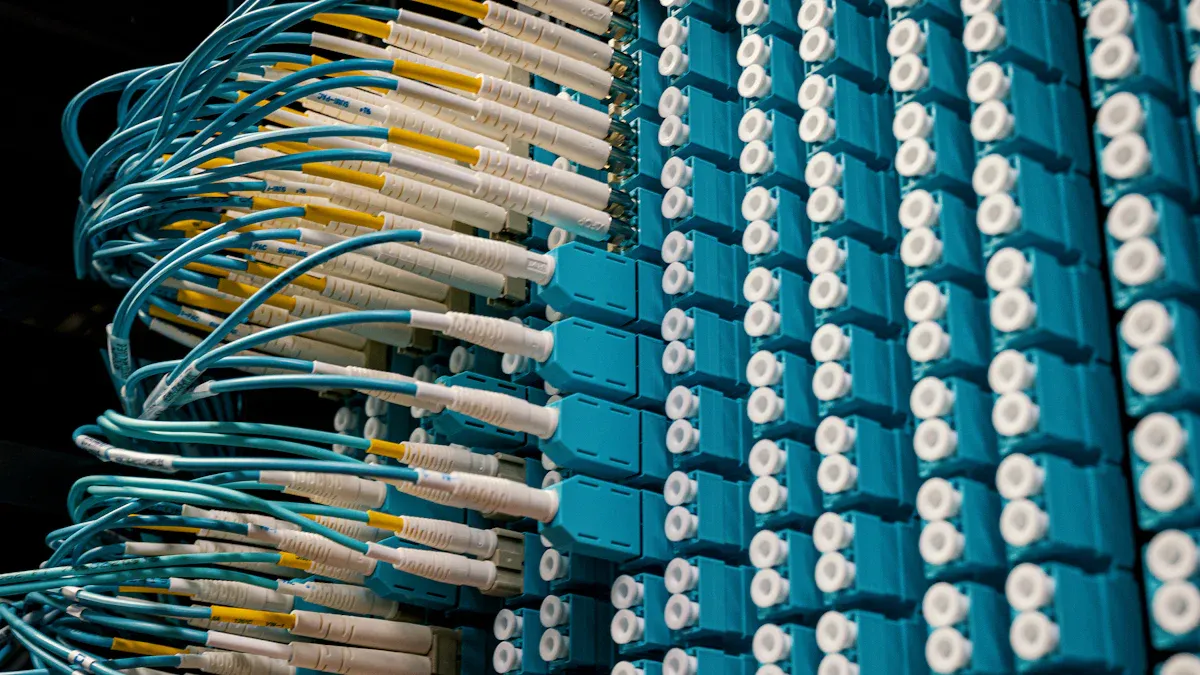

Fibre Patch Cord Basics
Types and Connectors
There are many fibre patch cords for home networks. Each one is made for a special job. Some are good for long distances. Others work better for short spaces. You need to know the difference before you pick one.
| Type | Description |
|---|---|
| Single Mode | Has a core about 9 microns wide. It is good for long-distance use. |
| Multimode | Has a core that is 50 or 62.5 microns wide. It works for short distances. |
| Simplex Patch Cord | Has one fiber cable. It sends data in only one direction. |
| Duplex Patch Cord | Has two fiber strands. It can send and get data at the same time. |
| SC Connector | This is a square connector. It is cheap and easy to use. People use it a lot in PON networks. |
| LC Connector | This is a small connector. It is good for places with lots of cables. People use it in FTTX. |
| ST Connector | This connector has a spring. It works for both single mode and multimode fibers. |
| FC Connector | This connector screws on. It is best for places that shake or move. |
| MPO/MTP Connector | This connector can hold many fibers. It is used in places with lots of network cables. |
You will see LC, SC, and MPO connectors in most home networks. These connectors make it easy to set up your network. They also help keep your network working well.
| Connector Type | Description | Advantages |
|---|---|---|
| LC | Lucent Connector | It is small and fits in tight spaces. |
| SC | Subscriber Connector | It is strong and simple to use. |
| MPO | Multi-fiber Push-On | It is good for many fiber cables. |
Tip: Always use the right connector for your equipment. This helps stop problems with your connection.
Benefits for Home Networks
Fibre patch cords give your home network many good things.
- Fiber optic patch cords use light to send data. This means they can move more data at once.
- They do not get as much interference as copper patch cords.
- These cords can go farther without losing signal quality.
You will get faster internet and fewer lost connections. Your network will work well even with many devices online. Fibre patch cords also help you get ready for new technology. You can upgrade your network more easily later.
Plan Installation
Before you start installing your fibre patch cord, you need a clear plan. Planning helps you avoid mistakes and keeps your network strong. You should look at your home and decide where you want your devices. Think about where you use your computer, TV, or gaming console most often. Draw a simple map of your rooms and mark the spots for each device.
Select Patch Cords
You must choose the right patch cords for your network. Look at the distance between your devices. Measure the space from your router to each device. Select a cable length that fits your needs. Patch cords come in many lengths, from 0.5 meters to 50 meters.
Here are some things to think about when picking a fibre patch cord:
| Factor | Description |
|---|---|
| Cord Length | Pick a length that reaches your device without extra slack. |
| Cord Type | Use single-mode for long distances. Use multimode for short spaces. |
| Connector Type | LC connectors fit tight spaces. SC connectors work for strong connections. |
| Cable Jacket | LSZH jackets are safe for homes. PVC jackets are common. Armored jackets protect cables. |
| Connector Polish | UPC polish gives low loss. APC polish works best for high-speed networks. |
Tip: Always match the patch cord specifications with your network equipment. This helps you get the best performance.
You can also look at the connector types and their uses:
| Connector Type | Applications |
|---|---|
| LC | SFP transceivers, high-density connections |
| SC | Telecom, datacom, GBIC transceivers |
| ST | Campuses, FTTH, corporate networks |
| FC | Measurement equipment, single-mode lasers |
| MPO/MTP | Multi-fiber ribbon, 40G/100G transceivers |
Identify Connection Points
You need to know where each cable will go. Mark the connection points on your map. Measure the distance between each point. This helps you avoid cables that are too short or too long.
Follow these steps to map your connection points:
- List all devices you want to connect.
- Mark each device’s location on your map.
- Measure the distance from your router or switch to each device.
- Write down the cable length you need for each connection.
Note: Make sure you keep your cables away from sharp bends and heavy furniture. This protects your fibre patch cord and keeps your network working well.
Planning your installation makes the process easier. You will know what you need and where to put each cable. This helps you build a reliable home network.
Prepare Workspace and Tools
Gather Materials
You need to collect all your tools and materials before you start. This step helps you work faster and avoid mistakes. Here is a list of items you should have ready:
- Fibre patch cord (choose the right type and length for your network)
- Connectors (LC, SC, or MPO, depending on your devices)
- Patch panel (helps organize and protect your cables)
- Fiber optic cleaning kit (keeps connectors and ports clean)
- Cable ties or Velcro straps (secure cables and prevent tangles)
- Measuring tape (check cable lengths)
- Marker or labels (mark connection points)
- Safety glasses (protect your eyes)
- Gloves (protect your hands from sharp fiber ends)
You can use the table below to check your materials:
| Item | Purpose |
|---|---|
| Fibre patch cord | Connects network devices |
| Connectors | Joins cables to equipment |
| Patch panel | Organizes connections |
| Cleaning kit | Removes dust and dirt |
| Cable ties/Velcro | Secures cables |
| Measuring tape | Measures distances |
| Marker/labels | Marks cables and ports |
| Safety glasses | Eye protection |
| Gloves | Hand protection |
Tip: Always keep your workspace tidy. A clean area helps you avoid losing small parts and keeps your cables safe.
Safety Tips
You must follow safety rules when working with fiber optic cables. These rules protect you and your equipment. Here are important safety tips:
- Learn the standards for fiber optic work. You should know rules like OSHA, NESC, and NEC.
- Keep your workspace clean. Pick up glass shards and throw away fiber scraps safely.
- Know the chemicals you use. Handle them with care and follow safety instructions.
- Watch your surroundings. Stay alert for hazards, especially near power lines or in tight spaces.
- Use the right tools. Never look directly into a fiber optic cable. This can hurt your eyes.
Note: Handle fibre patch cord gently. Do not bend or twist the cable. Sharp bends can damage the fiber and lower your network speed.
You can work safely and keep your network strong if you follow these steps.
Install Fibre Patch Cord
Route and Connect
You can put in a fibre patch cord at home. First, plan where each cable will go. Good cable management keeps your network strong. It also makes fixing problems easier. Organize cables so they do not cross or get tangled. Use trays, ties, or hooks to keep cords neat.
Here are steps to help you route and connect your fibre patch cord:
- Measure the space between your devices. Pick a patch cord that is not too long or short.
- Lay the cable along your planned path. Do not run cables near sharp edges or heavy furniture.
- Use trays, ties, or clips to manage cables. These tools stop sharp bends and keep cables safe.
- Check the smallest bend your cable can handle. Do not bend the fibre patch cord tighter than allowed. Sharp bends can break the glass inside and cause signal loss.
- Keep cables straight and free from knots. Tangled cords can get damaged and work poorly.
- Be gentle with connectors. Never force them into ports. Make sure they line up before you connect.
Tip: Always match the fiber type and connector type with your equipment. This helps you avoid connection problems.
Before you connect the fibre patch cord, clean the connectors and ports. Dust and dirt can block the light signal and slow your network. Use lint-free wipes and special cleaning fluid. Look at both ends of the connector before and after cleaning. Do not reuse cleaning wipes. Throw them away after each use.
Common mistakes to avoid:
- Bending cables too tightly
- Skipping cleaning steps
- Pulling on the cable jacket instead of the strength member
- Using the wrong connector type
| Mistake | What Happens | How to Prevent |
|---|---|---|
| Sharp bends | Signal loss, broken cable | Follow bend radius limits |
| Dirty connectors | Poor signal, connection failure | Clean before connecting |
| Tangled cables | Physical damage, hard to fix | Use cable management tools |
| Wrong connector type | No connection, high loss | Match connectors carefully |
Note: Check and clean your fibre patch cord often. Dirt is a big reason for link failure.
Use Patch Panel
A patch panel helps you organize and protect your network cables. You can connect all your fibre patch cords to the patch panel. This makes your network easy to manage and upgrade.
Here are reasons to use a patch panel in your home network:
- Centralizes cable management and reduces clutter
- Protects expensive equipment and connections
- Allows quick changes and upgrades
- Makes troubleshooting simple and fast
- Keeps your network reliable and stable
- Supports future growth and new devices
| Benefit | Why It Matters |
|---|---|
| Organization | Easy to find and fix cables |
| Protection | Prevents damage to equipment |
| Flexibility | Quick changes without rerouting |
| Reliability | Stable connections, less downtime |
| Scalability | Ready for new devices and upgrades |
To use a patch panel, connect each fibre patch cord from your device to the panel. Label each port so you know which device it links to. This helps you find problems fast and keeps your network neat.
Block Quote:
Pick patch cords with connectors that match your patch panel and equipment. This makes your connection strong and reliable.
You can keep your home network working well by routing cables carefully, cleaning connectors, and using a patch panel. These steps help you avoid signal loss and damage. Your fibre patch cord will last longer and work better.
Test Connections
Check Signal Quality
You should test your fibre patch cord after you install it. Testing helps you find problems early. It keeps your network working well. You can use different tools to check the signal.
- Fiber Detectors show if the fiber has a signal.
- Visual Fault Locators send light through the cable. You can see breaks or faults if light leaks out.
- Light Sources and Power Meters measure the light in the cable. These tools tell you if your connection is strong.
There are special ways to test how well your cable works. Here are some common ways:
| Method | Steps |
|---|---|
| Three-Cord Method | 1. Use launch, substitution, and tail cords to set a reference. 2. Swap the substitution cord with the cable you want to test and measure. |
| Enhanced Three-Cord Method | 1. Set a reference with the launch cord. 2. Add a tail cord and substitution cord, check for low loss. 3. Swap the substitution cord with the cable you want to test and measure loss. |
| Equipment-Cord, Channel Test Method | 1. Set the reference with the launch and first equipment cord. 2. Add the second equipment cord to the power meter and measure loss. |
You can test each patch cord and fiber jumper one at a time. This is important if you buy cords from different places. Use an optical loss test set (OLTS) for the best results. The OLTS connects to the jumper and checks how much signal goes through.
Tip: Test your cables before you use them. This helps you avoid slow internet and dropped connections.
Troubleshoot Issues
Sometimes, problems happen after you install your fibre patch cord. You need to know how to fix these problems fast. Here are some common problems and ways to solve them:
| Issue | Description | Resolution |
|---|---|---|
| Exceeding the Loss Budget | Longer cables and more connections can cause more loss. | Figure out loss budgets before you start and test after you finish. |
| Contaminated Connector End Faces | Dirt or scratches block light signals and cause more loss. | Use a scope to look for dirt and clean or change connectors if needed. |
| Connector Misalignments | Connectors that do not line up cause more loss and reflection. | Make sure connectors fit right and use good connectors. |
| Fiber Cable Faults | Bending or damage can cause signal loss. | Follow bend radius rules when you install cables. |
| Improper Polarity | Wrong connections can stop signals. | Check and fix the polarity when you install cables. |
You can fix most problems by checking and cleaning connectors. Use a scope to look for dirt or scratches. Clean the connector with a special wipe if you see anything. If the cable bends too much, straighten it and follow bend rules.
Follow these steps to fix your network:
- Check each connection for dirt or damage.
- Use a visual fault locator to find breaks.
- Measure signal strength with a power meter.
- Make sure connectors match and fit well.
- Look at your cable map to check for polarity mistakes.
Note: Keep your cables clean and neat. This helps you avoid most problems and keeps your network fast.
You can keep your home network strong by testing and fixing problems quickly. Regular checks help you find problems before they slow down your internet.
Maintain Fibre Patch Cords
Inspect and Clean
You need to check and clean your cables often to keep your network strong. Even a small amount of dirt can cause problems with your signal. Regular inspection and cleaning help you avoid slow speeds and dropped connections.
- Clean your cables more often if you notice any drop in performance, like slower internet or more signal loss.
- Always check the ends of your cables and connectors for dust or residue.
- Clean the connectors right away if you see any dirt.
Regular cleaning keeps your network running smoothly and helps your cables last longer.
You can use different cleaning methods at home. The table below shows two common ways:
| Cleaning Technique | Tools Used | Steps |
|---|---|---|
| Dry Cleaning Technique | Cartridge and Pocket Style Cleaners | 1. Turn off lasers. 2. Remove endcap. 3. Inspect with fiberscope. 4. Clean if dirty. 5. Inspect again. |
| Dry Clean Technique | Lint-Free Wipes | 1. Use clean room quality wipes to clean the connectors. |
Prevent Damage
You can protect your cables by following a few simple steps:
- Pick cables with jackets that fit your home, like LSZH for fire safety.
- Use bend-insensitive fibers if you need to route cables around tight corners.
- Always follow the bend radius and tension limits when you install cables.
- Label your cables to make future work easier.
- Run cables through conduits or use enclosures to keep them safe from pets or accidents.
- Check your cables every month, clean them every few months, and test them once a year.
Tip: Careful handling and regular checks help prevent damage and keep your network reliable.
Plan Upgrades
You can make future upgrades easier by planning ahead:
- Choose cables that support higher speeds, like Cat6a or fiber optic.
- Think about how many devices you might add later and plan for more bandwidth.
- Set up your cables in a way that makes it easy to add or change connections.
A good plan helps you avoid problems and keeps your network ready for new technology.
Keeping your fibre patch cord clean and safe gives you better performance and a longer-lasting network.
You can make your home network strong by doing a few simple things. First, plan where your cables will go and think about what you might need later. Next, put the cables in safe spots and connect them the right way. Then, use the right tools to check if your signal is good. Last, look at your cables often and clean them to keep them working well.
| Step | What You Do |
|---|---|
| Planning | Draw cable paths and think about future devices |
| Installation | Put cables in safe places and connect them right |
| Testing | Use tools to check if your signal is strong |
| Maintenance | Check and clean cables often |
Fibre networking gives you fast internet, works well, and has little delay. Keep your cables tidy and clean so you can enjoy fast internet at home. 🚀
FAQ
How do you clean fiber patch cord connectors?
You use a lint-free wipe and fiber cleaning fluid. Gently wipe the connector tip. Always inspect before and after cleaning. Never touch the connector with your fingers.
Can you bend fiber patch cords?
You should not bend fiber patch cords sharply. Always follow the bend radius listed by the manufacturer. Sharp bends can break the glass inside and cause signal loss.
What happens if you use the wrong connector type?
If you use the wrong connector, your devices will not connect. You may also get a weak signal or no signal at all. Always match the connector type to your equipment.
How often should you check your fiber patch cords?
You should inspect your cables every month. Look for dirt, dust, or damage. Clean connectors if you see any dirt. Regular checks help keep your network fast.
Do fiber patch cords work with Wi-Fi routers?
Most Wi-Fi routers use copper cables. Some advanced routers and mesh systems support fiber connections. Check your router’s ports. If you see an SFP or fiber port, you can use a fiber patch cord.
