How To Fix High Attenuation & Signal Loss In Fiber Optic Networks (5-Step Guide)

Signal loss in Fiber Optic networks can make data slow. It can also break your connection. High attenuation makes your system not work well. It wastes your time. You should fix it fast to get speed and stability back. > You can solve this with simple steps. Each step helps you find problems and fix them.

Key Takeaways

• Clean Fiber Optic connectors often to stop dirt and dust. Dirt and dust can make signals weak. Cleaning helps your network work well.
• Look at cables for damage like breaks or bends. Finding problems early saves money. It also stops long network downtime.
• Use the right tools to test for weak spots. Testing often keeps your network working well. It also stops problems before they start.
• Set up your Fiber Optic system with care. Do not make sharp bends. Use fiber types that lose less signal. This helps signals stay clear and go farther.
• Make a plan to check your network often. Regular checks and cleaning help you find problems early. Fixing issues early keeps your network healthy.

Fiber Optic Connection Cleaning

Why Clean Connectors Matter

It is important to keep Fiber Optic connectors clean. Dirty connectors can cause signal loss. High attenuation and unstable connections may happen. Dust, dirt, and moisture block the light inside the cable. You might notice slow speeds or dropped signals. Many network problems come from dirty connectors. About 15-50% of Fiber Optic issues are from contamination. Things like hands, clothes, building materials, and dust in the air can cause this. Even dust caps can bring in dirt. Cleaning connectors helps your network stay strong and reliable.

Tip: Clean and check connectors often. This lowers the chance of signal problems and keeps your Fiber Optic network working well.

Common contaminants that affect connectors:

• Dust
• Dirt
• Moisture

Cleaning Tools and Methods

You can use special tools to clean Fiber Optic connectors. Manufacturers suggest swabs, cleaning kits, and degreasers. Some good choices are:

• Swabs and applicators
• Fiber Optic cleaning products
• Cleaner degreaser
• Presaturated swabs and wipes
• Specialized cleaning tools

You can use the FOCCUS CCT Clear Connection Tool for quick cleaning. Fiber Optic connector cleaning swabs help remove dirt from sleeves. Electro-Wash PX Degreaser works well on plastics. Quick Clean cleaning tools use lint-free strands for safe cleaning. Swabs come in sizes like 2.5 mm and 1.25 mm to fit different connectors.

Troubleshooting Dirty Connections

Check and clean connectors often. How often depends on your environment. Use this table to help plan your cleaning:

If you see signal loss or unstable connections, look for dirt first. Clean connectors with the right tools. Regular cleaning keeps attenuation low and your Fiber Optic network healthy.

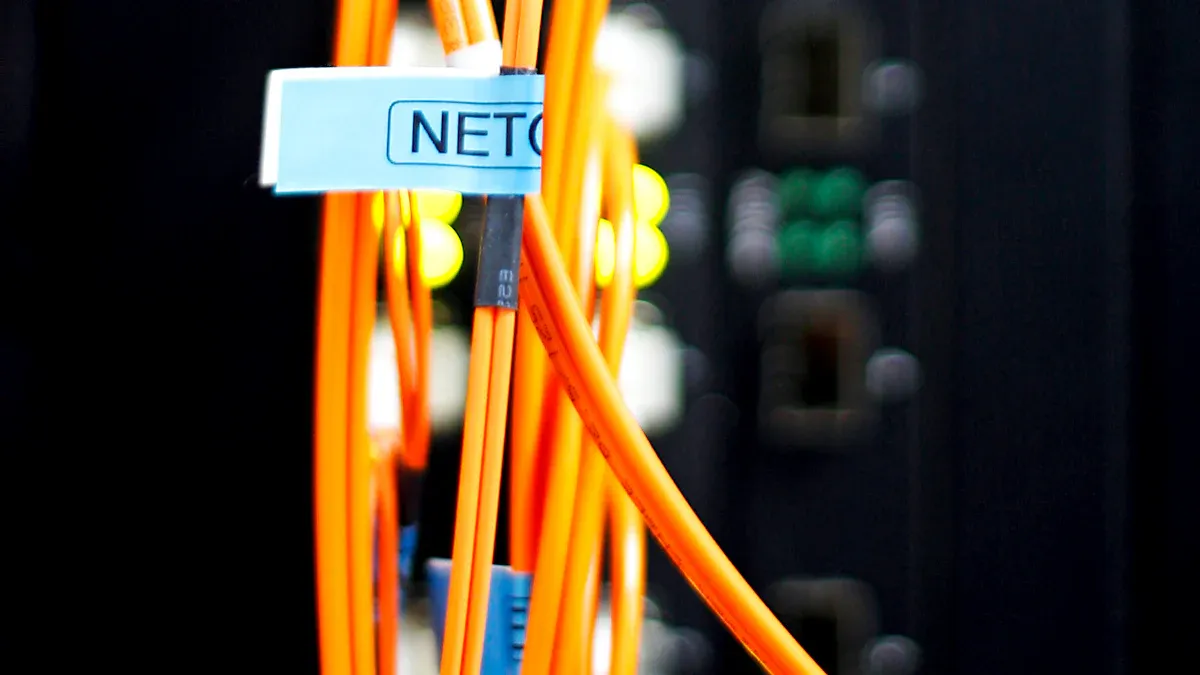

Inspect for Physical Cable Damage

Spotting Damage Signs

Physical damage can cause big trouble in your network. You should know what to look for when you check cables. Here is a table that lists common damage types, what they look like, and how they hurt your network:

You might notice slow speeds or dropped connections if you have these problems. Sometimes, you can lose service completely. Microbends or macrobends can slow down your data. They also lower bandwidth. This can stop your service and make your network less steady.

Visual Inspection Steps

You can find many problems by looking at the cables. Follow these steps to check your cables:

1. Look for sharp bends or kinks in the cable.
2. Check for breaks, cuts, or deep scratches on the outside.
3. Look at connectors for dirt, dust, or fingerprints.
4. Make sure cables are not stretched or pressed by heavy things.
5. See that cables are neat and not tangled.

Tip: Keeping cables neat helps stop tangling and damage. This keeps your network working fast and well.

Good installation is important too. Do not bend cables sharply or stretch them. These steps help stop signal loss and keep your Fiber Optic network strong.

Handling Damaged Fiber Optic Cables

If you find damaged cables, be careful when you handle them. Follow these steps to stay safe and protect your network:

1. Put on safety glasses, gloves, and protective clothes.
2. Get a clean, bright work area and a fiber trash bin.
3. Use the right tools to cut or fix fibers. Clean up pieces with lint-free wipes.
4. Put fiber waste in a marked sharps bin.
5. Coil and throw away cables by local e-waste rules.
6. Seal and throw away cleaning stuff as hazardous waste.
7. Teach everyone who works with cables and label all waste bins.
8. Clean your work area with damp wipes and look for stray fibers.

Note: Always follow safety steps when you handle damaged cables. This keeps you safe and stops more problems in your network.

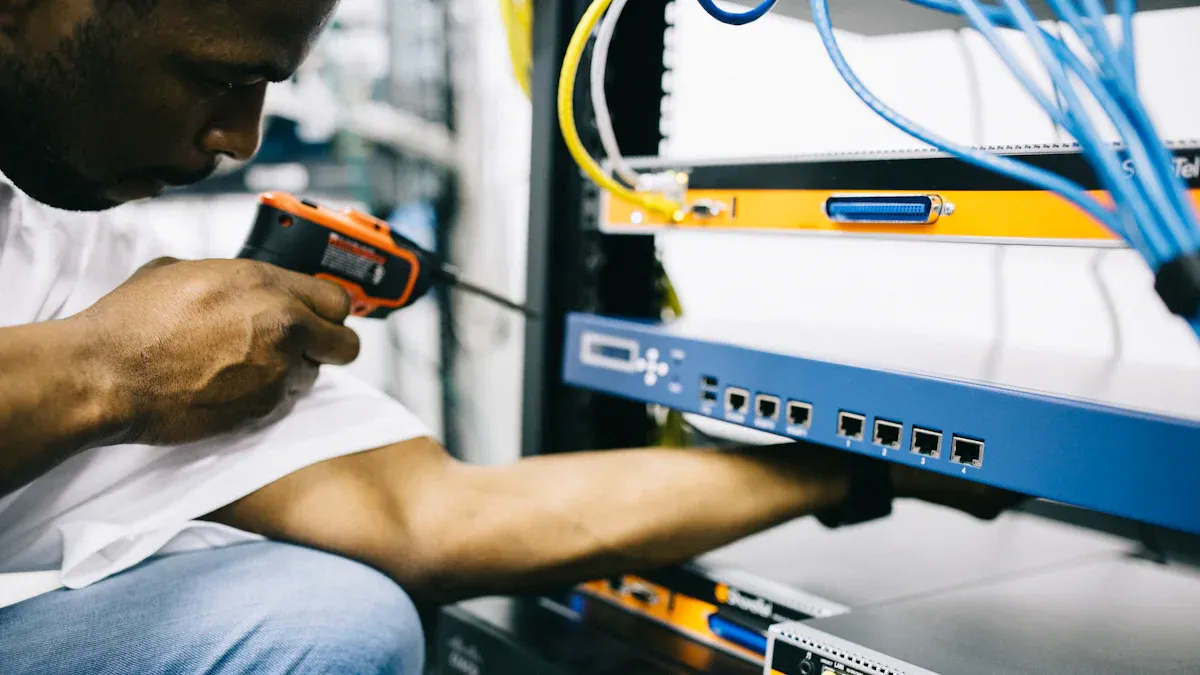

Test and Replace Faulty Components

Essential Testing Tools

You need the right tools to find problems in your network. Testing helps you spot weak spots before they cause bigger trouble. Here is a table that shows the most effective tools and how you use them:

You can use these tools to check if your Fiber Optic cables and connectors work well. Regular testing keeps your network strong and reliable.

Identifying Bad Transceivers or Panels

Sometimes, the problem is not with the cables. Transceivers and panels can also fail. You might notice blinking lights, no signal, or slow speeds. Try these steps to find bad parts:

• Check for warning lights or error messages on your devices.
• Swap the suspected transceiver with a working one to see if the problem moves.
• Use a power meter to test signal strength at each panel.
• Look for signs of heat or damage on the transceiver.

If you find a faulty part, replace it right away. This helps you avoid more signal loss and keeps your network running smoothly.

Safe Replacement Tips

Safety comes first when you replace Fiber Optic parts. Follow these tips to protect yourself and your network:

• Keep food and drinks away from your work area.
• Work on a dark surface so you can see fiber scraps.
• Wear disposable aprons and protective gloves.
• Always use safety glasses with side shields.
• Never look directly into the end of a fiber cable.
• Work in a space with good airflow.
• Wash your hands before touching your eyes or contacts.
• Throw away fiber scraps in marked containers.
• Clean your work area after you finish.

Tip: Always check for light before you look into a cable. Even a small beam can hurt your eyes.

By using the right tools and following safety steps, you can test and replace faulty components with confidence.

Optimize Fiber Optic Network Setup

Avoiding Sharp Bends

Keep Fiber Optic cables straight. Do not bend them sharply. Sharp bends can make signals weak. Your network can get slow. Always check the bend radius when you install cables. The bend radius shows how much you can bend a cable. If you bend too much, the signal gets hurt. Use this table to remember the rules:

If you follow these rules, your cables stay safe. Your network will work well. Do not press cables under heavy things. Do not stuff cables into trays.

Tip: Use cable guides and trays. They help keep bends gentle and neat.

Using Low-Loss Fiber Types

Pick the right cable for your network. Low-loss fiber types send signals farther and clearer. Look at this table to see the differences:

Low-loss fiber gives better performance. You get fewer problems. Use these cables for important network parts.

Improving Cable Management

Good cable management keeps your network safe. It also keeps it fast. Organize cables and keep them neat. Messy cables can cause signal loss. Repairs get harder too. Look at this table to see how cable management helps:

Follow these steps to manage cables better:

• Keep cables straight and untangled.
• Use cable ties and trays to hold cables.
• Check cables often and fix problems.

Note: Clean and organize cables often. This helps you find problems fast. Your network will work better.

Cleaning, good cable management, and regular checks help lower signal loss. These steps make your Fiber Optic network stronger and more reliable.

Monitor and Maintain Fiber Optic Performance

Routine Inspection Plans

You need a good inspection plan to keep your network safe. Regular checks help you find problems early. Try these easy steps:

• Check cables and connectors for damage or loose parts.
• Clean connectors often so dirt does not cause signal loss.
• Follow a set schedule for all your maintenance work.

Always look at each connector end face before you connect it to equipment. Clean it if you see dirt. Using IEC industry standards helps you keep fiber clean every time.

Make inspections part of your routine when you install or fix things. This step can stop many network problems before they happen.

Monitoring Software Use

Modern monitoring tools make your work easier. You can watch your network’s health in real time. Here are some useful tools:

• Fiber link monitors check signal strength and bit error rates.
• Optical Time-Domain Reflectometry (OTDR) finds faults by sending light pulses.
• Optical Spectrum Analysis (OSA) measures the power and color of light signals.
• Optical Performance Monitoring (OPM) checks power levels and error rates.
• Network Management Systems (NMS) collect and study data from your devices.

These tools send alerts and show problems right away. You can even watch your network from far away and use data to see patterns.

Preventive Maintenance Tips

You can stop many problems with simple steps. Clean connectors every 30-60 days in normal places. Clean more often if your area is dusty or busy. Regular cleaning helps connectors last longer and lowers signal loss.

Here are some good things about regular monitoring and maintenance:

1. You get updates about your network right away.
2. Automated alerts tell you if there is trouble.
3. You can check your network from anywhere.
4. Data analytics help you spot patterns and fix problems.
5. You save time and make fewer mistakes.

Keep learning about new technology, like smart patch panels and distributed acoustic sensing. These tools help you find and fix problems faster. Doing these steps will help your Fiber Optic network stay strong and work well.

If you see high attenuation or signal loss, act fast. These issues can make repairs expensive. Your network might stop working for a while. Use these five steps to keep your fiber optic network strong:

1. Clean connectors.
2. Check cables for damage.
3. Test and change broken parts.
4. Make your setup better.
5. Watch and take care of performance.

Plan carefully before you start. Use good quality parts. Check your network often to avoid moisture and dust. Stay ahead of problems to keep your network working well.

FAQ

What causes high attenuation in fiber optic cables?

High attenuation can happen if connectors are dirty. Sharp bends or damaged cables also cause it. If you install cables badly, signal loss goes up. Using low-quality fiber makes things worse. Clean and handle cables with care to stop these problems.

How often should you clean fiber optic connectors?

Clean connectors every 30 to 60 days in normal places. If your area is dusty or busy, clean them more often. Cleaning often helps your network stay strong.

Can you fix a bent fiber optic cable?

You cannot fix a cable with a sharp bend. You need to get a new cable instead. Always follow bend radius rules so you do not damage cables again.

What tools help you find signal loss?

Use power meters, visual fault locators, and OTDR devices. These tools help you check signal strength. They also help you find breaks or bends in your network.

Why does cable management matter?

Good cable management keeps cables neat and safe. It lowers the chance of damage and signal loss. When cables are organized, repairs and upgrades are easier.
