How Do You Test Fiber Optic Cable​ ？

You can answer how do you test fiber optic cable​ with three main techniques. You use a visible light source to spot breaks or bends. You use a power meter and light source to measure signal loss. You use an OTDR to check for faults and length. Choosing the right tool like an OLTS, VFL, or fiber identifier helps you get accurate results.

Key Takeaways

• Begin by looking at the connectors. Check for dirt, scratches, or cracks. Clean any problems so the signal does not get lost.
• Use a visible light source like a VFL. It helps you find breaks or bends in the fiber fast. This way shows faults you can see. It does not tell you about signal loss.
• Use a power meter and light source to check signal loss. Measure how much signal is lost. Compare your results to what is normal. Make sure the cable works well.
• Use an OTDR for a closer look at the fiber. It finds faults and measures how long the cable is. It gives a full picture of the fiber’s health.
• Pick the best testing method for your project. Think about the cable type and where it is used. Decide how much detail you need.

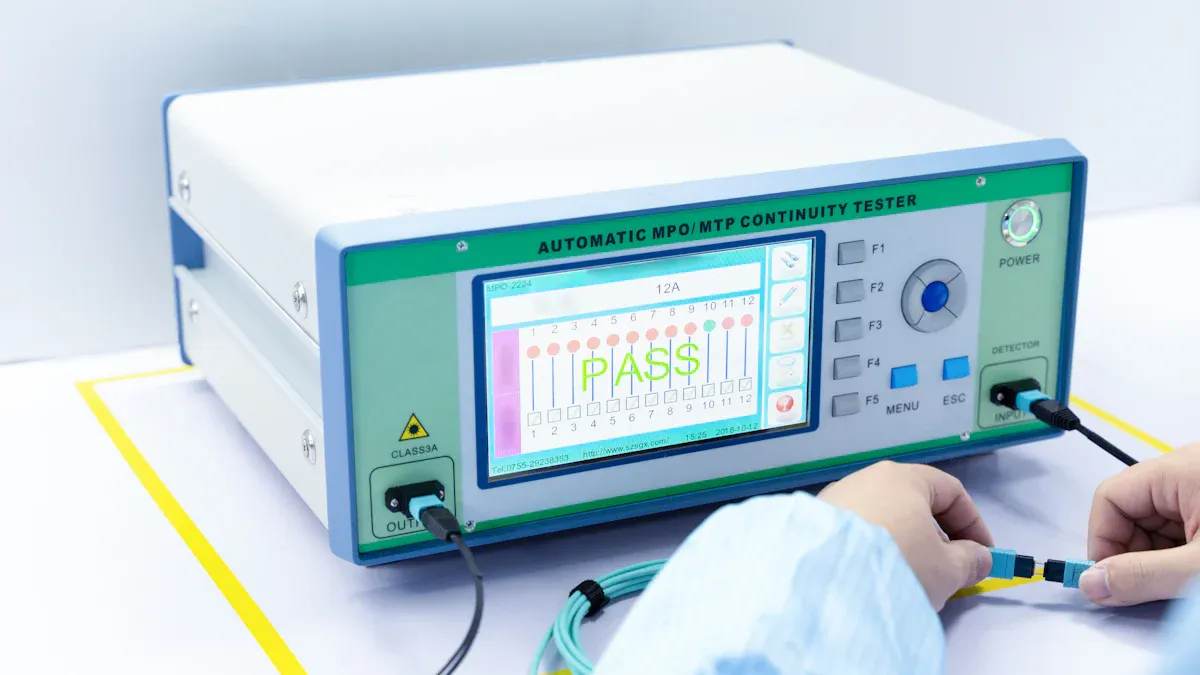

how do you test fiber optic cable​: main methods

Testing fiber optic cables helps you find problems. It also keeps your network working well. You can check cables and connectors in different ways. Each way uses special tools. These tools tell you different things about the cable’s health.

Visual Inspection

You begin with visual inspection. This step helps you see dirt, scratches, or cracks. You look at the connector endfaces. You use a fiber microscope or inspection probe. These tools help you look closely at each connector. If you see dirt or debris, clean the connector. Use approved wipes or cleaning tools. You should check every connector before testing. Experts say this in FOA and IEC 61300-3-35 standards.

Tip: Write down any defects you find. Even small defects like oil, dust, or scratches can cause signal loss. They can also make the cable work poorly.

Common defects you may find:

• Oil
• Dust
• Impurities
• Dents
• Scratches

Visible Light Source

A visible light source like a VFL helps you answer how do you test fiber optic cable​ when you need to find breaks or bends. You shine a bright red light into the fiber. If there is a break, the light escapes. You can see the problem easily. This method works for buffered fiber and single fiber cables. It works best if the jacket is not opaque. Colors like yellow and orange let the light pass. You can see faults more easily.

Note: The VFL does not measure signal loss. It only shows where the cable is broken or bent.

Power Meter Testing

You use a power meter and light source to measure signal loss. This method helps you answer how do you test fiber optic cable​ when you want to check performance. Connect the light source to one end. Connect the power meter to the other end. The meter shows loss in decibels (dB).

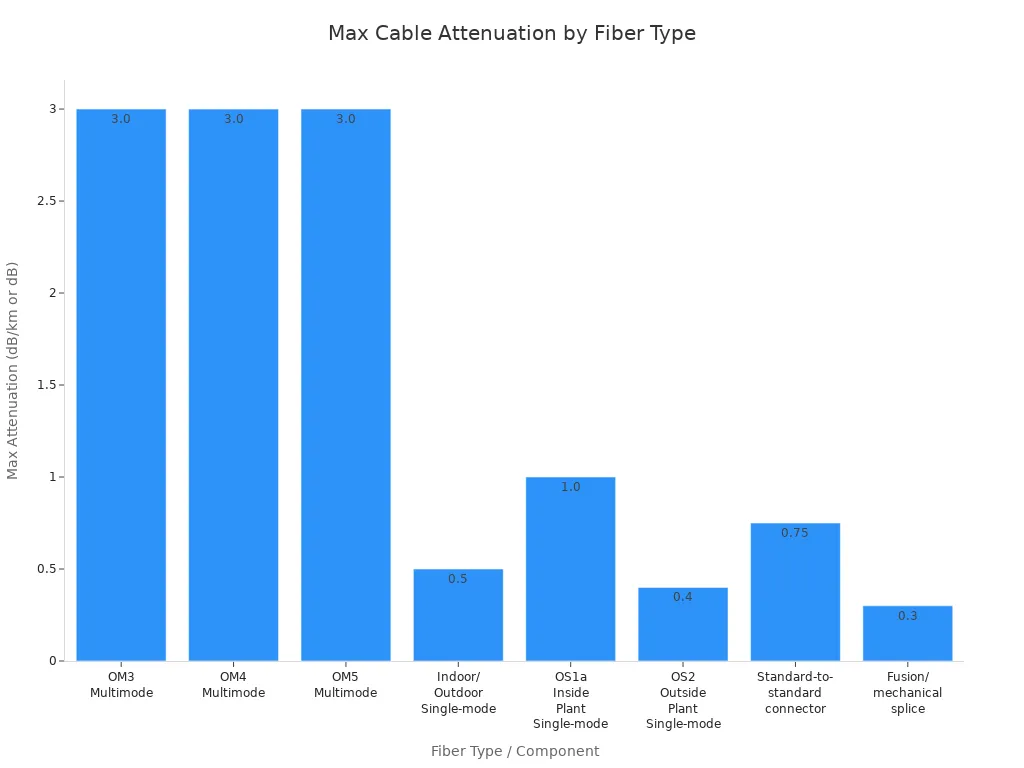

Compare your results to industry standards. This tells you if the cable passes. For example, TIA-568.3-E sets limits for loss. Loss budget calculations help you decide if the cable is good enough.

OTDR Testing

An OTDR gives you a close look at the cable. You use this tool to find faults like breaks or bad splices. The OTDR sends light pulses into the fiber. It measures how the light comes back. You see a trace on the screen. Spikes mean reflective events like connectors or mechanical splices. Dips show non-reflective events like fusion splices or breaks.

Modern OTDRs can find faults close together. Some find events less than 1 meter apart. The best ones can go as low as 0.3 meters. The OTDR also calculates the distance to faults. It uses the time domain principle:
Distance = (Speed of Light in Fiber × Time Delay) / 2

Tools for Accurate Testing

You need the right tools for good results. An OLTS helps you measure loss. A VFL helps you find breaks. A fiber identifier lets you check if the fiber is live. You do not need to disconnect it. Using these tools makes testing faster and more reliable.

Now you know how do you test fiber optic cable​ using visual inspection, visible light source, power meter, and OTDR. Each way gives you important information. This helps keep your fiber network working well.

Step-by-step guide for fiber optic cable testing

Visual Inspection Steps

You start with a visual inspection to check for dirt, scratches, or cracks on your fiber optic connectors and cables. This step helps you prevent problems before you run any electronic tests.

Required Tools:

Safety Precautions:

• Wear safety glasses or goggles to protect your eyes from fiber shards.
• Keep food and beverages away from work areas to prevent ingestion of fiber particles.
• Never look directly into the end of fiber cables to avoid eye damage.
• Don’t touch your eyes until hands are thoroughly washed after handling fiber optics.
• Properly dispose of fiber and cable scraps to prevent injury from glass shards.

Step-by-Step Instructions:

1. Put on your safety glasses or goggles.
2. Set up your inspection tools and cleaning supplies.
3. Use the inspection probe or video bore scope to examine each connector endface.
4. Look for oil, dust, scratches, or cracks.
5. If you see any dirt or debris, use dry action cleaning tools to clean the connector.
6. Inspect again to confirm the connector is clean.
7. Record any defects or issues you find.

How to Interpret Results:
If you see a clean, smooth endface with no visible particles or scratches, your connector is ready for testing. Any dirt, oil, or scratches can cause signal loss. Clean or replace connectors with visible damage.

Visible Light Source Steps

A visible light source, such as a visual fault locator (VFL), helps you find breaks or severe bends in the fiber. This method gives you a quick way to spot faults.

Required Tools:

• Visual Fault Locator (VFL) or optical fiber flashlight
• Fiber optic patch cables (if needed for connection)

Step-by-Step Instructions:

1. Connect the VFL or optical fiber flashlight to one end of the fiber strand. Make sure the fiber is terminated.
2. Look at the opposite end of the fiber.


   ⚠️ Never look directly into the fiber end. Laser light can cause serious eye damage.

3. If you do not see light at the far end, a break or problem exists somewhere along the fiber. Often, the fault location will glow red from the VFL.
4. Write down your test results.

How to Interpret Results:

• If you see a bright red glow at a specific point along the cable, you have found a break or severe bend.
• If the entire end of the ferrule glows red, the fiber may be scattered below the ferrule end face.
• Scattered optical fiber inside connector ferrules or a broken fiber below the surface can also show up as glowing spots.
• If you see light at the far end, the fiber is continuous, but this does not guarantee low signal loss.

Power Meter Steps

A power meter and light source let you measure how much signal the fiber loses. This test checks if the cable meets performance standards.

Required Tools:

• Optical Power Meter
• Stabilized Light Source (matching the fiber type and wavelength)
• Reference patch cables
• Cleaning tools

Step-by-Step Instructions:

1. Clean all connectors with approved cleaning tools.
2. Connect the light source to one end of the fiber using a reference patch cable.
3. Connect the power meter to the other end.
4. Turn on both devices and set the correct wavelength (such as 850 nm, 1310 nm, or 1550 nm).
5. Record the power reading in decibels (dB).
6. Repeat for each fiber strand you want to test.

How to Interpret Results:
Compare your measured loss to the maximum allowed by industry standards, such as TIA-568.3-E. If the loss is below the limit, your fiber passes. High loss means you need to clean connectors, check for damage, or replace the cable.

OTDR Steps

An Optical Time Domain Reflectometer (OTDR) gives you a detailed map of the fiber. You can find faults, splices, and measure the length of the cable.

Required Tools:

• OTDR unit
• Launch cable (to separate the OTDR from the first connector)
• Receive cable (for accurate end measurements)
• Cleaning tools

Step-by-Step Instructions:

1. Clean all connectors before connecting them to the OTDR, launch, and receive cables.
2. Connect the launch cable to the OTDR and then to the fiber under test.
3. Attach the receive cable to the far end of the fiber.
4. Set the OTDR for the correct fiber type and wavelength.
5. Start the test and watch the OTDR trace on the screen.
6. Save or print the trace for your records.

How to Interpret Results:

• Spikes on the trace show reflective events like connectors or mechanical splices.
• Dips show non-reflective events such as fusion splices or breaks.
• A sudden drop to zero means a break in the fiber.
• The OTDR also shows the distance to each event, helping you locate faults quickly.

Tip: Use the OTDR trace to check for unexpected loss or reflection. This helps you answer how do you test fiber optic cable​ when you need to find hidden faults or verify installation quality.

Method comparison and choosing the right test

Pros and Cons

It is important to know what each testing method does well and what it does not. Every method gives you different details. Some methods work better in certain situations.

Visual inspection is good for quick checks. A visible light source helps you find breaks or bends fast. Power meters measure signal loss very well. OTDRs show a full map of the fiber and where problems are.

OTDRs cost more money and take longer to set up than power meters or light sources. For example, OTDR testing takes about 10 to 15 seconds for each fiber. Light source testing only takes 3 to 5 seconds.

When to Use Each Method

Pick your testing method based on what your project needs. Think about the cable type and where you are working.

• Visual Inspection: Use this for regular checks and before other tests. It helps you spot dirt or scratches on connectors.
• Visible Light Source (Visual Fault Locator): Use this when you need to find breaks or tight bends quickly. It works best for simple tests.
• Power Meter and Light Source: Use these when you need to measure signal strength and loss. They work well for most jobs.
• OTDR: Use OTDR testing for finding faults, troubleshooting, and certification. Some customers want OTDR results for Tier 2 certification. OTDRs show where faults are and how long the cable is.

Think about the environment too. High heat and humidity can change how fiber cables work. Testing often helps you find problems early and keeps your network working well.

• OTDR testing is needed when you want to find faults and see the whole fiber link.
• Power meter testing is best for checking signal loss but does not show where faults are.
• Visible light sources are good for simple checks.

Tip: Always choose your testing method based on your cable type and project size. For small jobs, light sources and power meters are cheaper and easier. For big or important networks, OTDRs give you more details.

Testing fiber optic cables the right way keeps your network working. Pick the best method for your job. Always follow the rules set by experts. Clean and check connectors before you test. Use good tools to get correct results. Here are some mistakes people make and how to stop them:

Wear safety glasses to protect your eyes. Keep your work area neat and throw away fiber scraps the right way. Test your cables often to find problems early and keep your network strong.

FAQ

What is the most common reason for fiber optic cable failure?

Connectors often get dirty or scratched. These issues make signals weak. Always clean and check connectors before you test them.

Can you test fiber optic cables without expensive equipment?

You can use a visual fault locator or inspection probe for simple checks. These tools help you find breaks or dirt. For more advanced tests, you need power meters or OTDRs.

How often should you test fiber optic cables?

Test cables after you install them. Test them during regular checkups. Test them when you see network problems. Regular testing helps you find problems early.

What does a high loss reading mean?

A high loss reading means the cable might be damaged. It could have dirty connectors or bad splices. Clean the connectors and look for breaks or bends.

Is OTDR testing safe for all fiber types?

You can use OTDRs on most single-mode and multimode fibers. Always pick the right wavelength and fiber type before you test.
